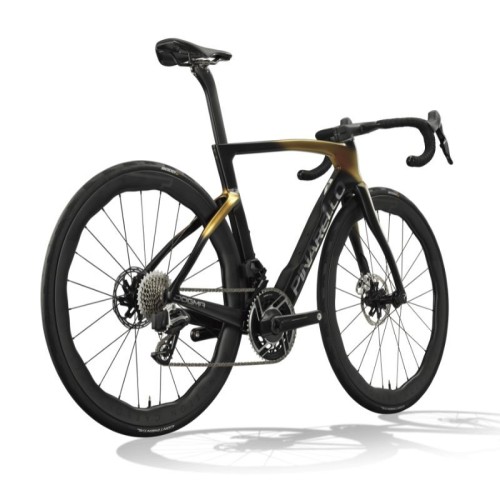

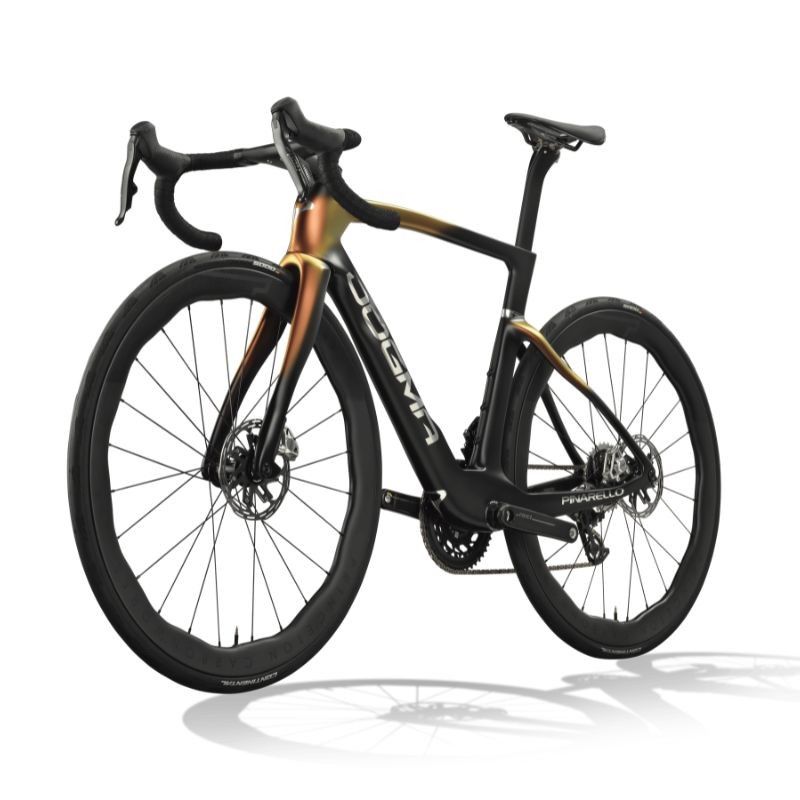

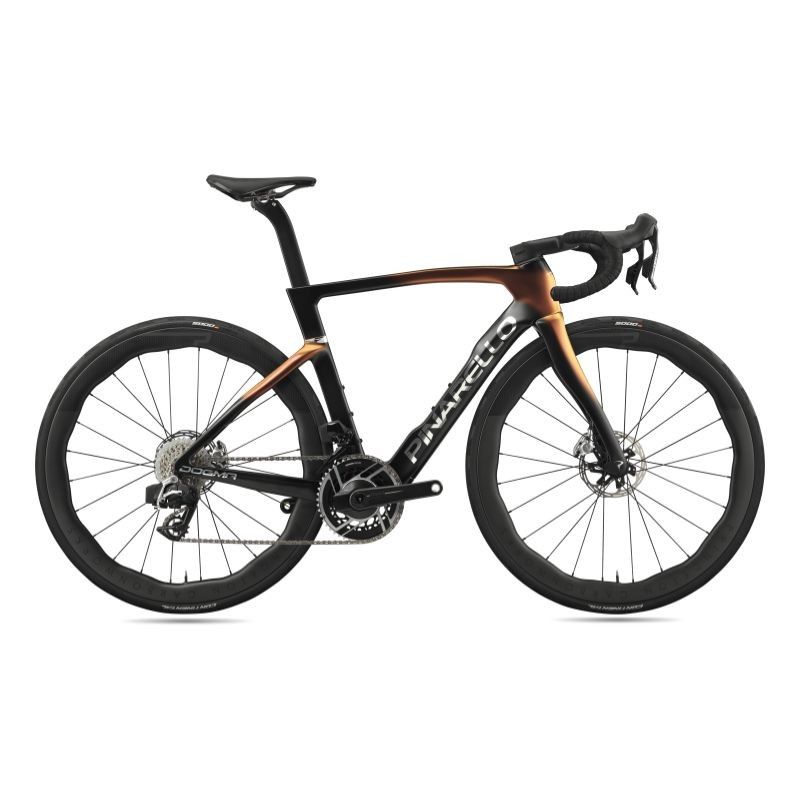

Pinarello Dogma F Sram Red eTap AXS DT Swiss ARC 1400 Luxter Red Gold 2025 Road Bike

What are the new features of the Pinarello Dogma F?

The new road bike Pinarello Dogma F is distinguished by a significant weight reduction thanks to the use of the new M40X fiber of Torayca, replacing the T1100 1K, and allowing the frame to switch from 850 to 742 grams. Pinarello also reworked the aerodynamics of the bike, reducing the drag coefficient by 0.2%. The direction socket is narrower, the diagonal tube has seen its optimized angles, and the pedal box has been adjusted. The fork has also been completely redesigned, with a new 47mm rake, to improve aerodynamics, but also the handling and stability of the bike.

Advanced equipment

To continue, the new Dogma F Pinarello is equipped with new combo cintre/potence MOST Fast Talon, designed to improve maneuverability and aerodynamics, by lowering weight. The handlebar now has a 7° flare, responding to the demands of the riders for a better alignment of the brake levers and forearms. The transmission of this Dogma F is signed Shimano, with the Dura Ace Di2 12 speeds, which ensures ultra-fast and accurate speed changes. Finally, this road bike is equipped with carbon wheels DT Swiss ARC 1400 Di Cut.

Data sheet:

• Framework : TorayCa M40X, TiCRTM Cable Routing, Italian BB
• Fork : NEW eTICR Onda Fork with ForkFlapTM
• Transmission : Shimano Dura Ace Di2 RD-R9200 12s
• Pedal : Shimano Dura Ace FC-R9200, HollowTech 2, 12s
• Cassette : Shimano Dura Ace CS-R9200 12S
• Pedal box : Shimano Dura Ace SM-BB9200
• Freins : Dura Ace BR-R9200
• Brake disc : 160mm / 140mm
• Cintre : MOST Ultra Fast Talon
• Saddle : Pinarello Aero seatpost with 3D printed
• Selle : Most Lynx Ultrafast Superflow L Carbon Large 145mm
• Wheels DT Swiss ARC 1400
• Tires Continental Gran 5000S TR28-622
