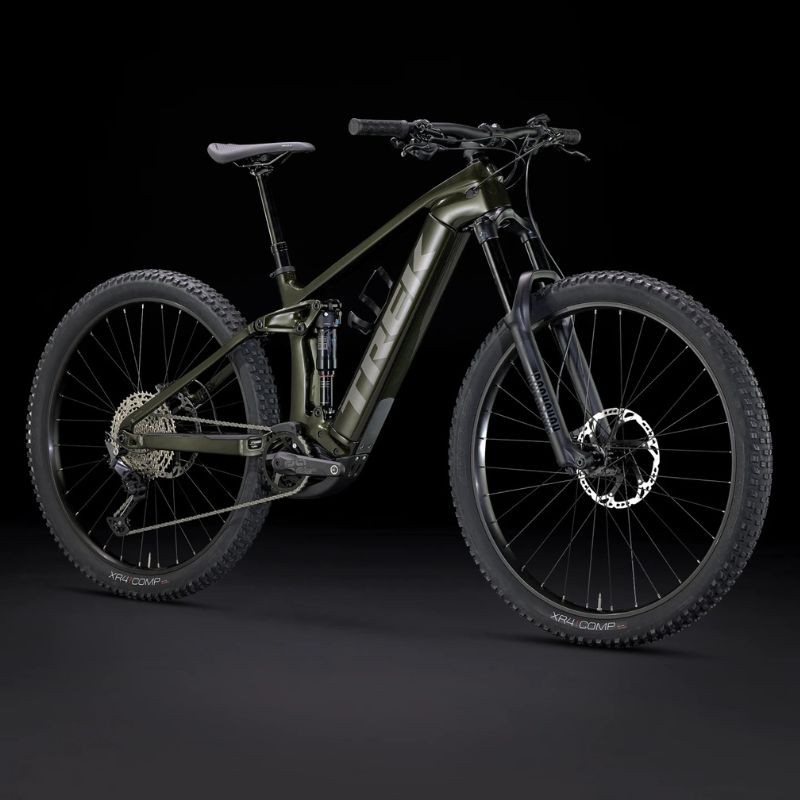

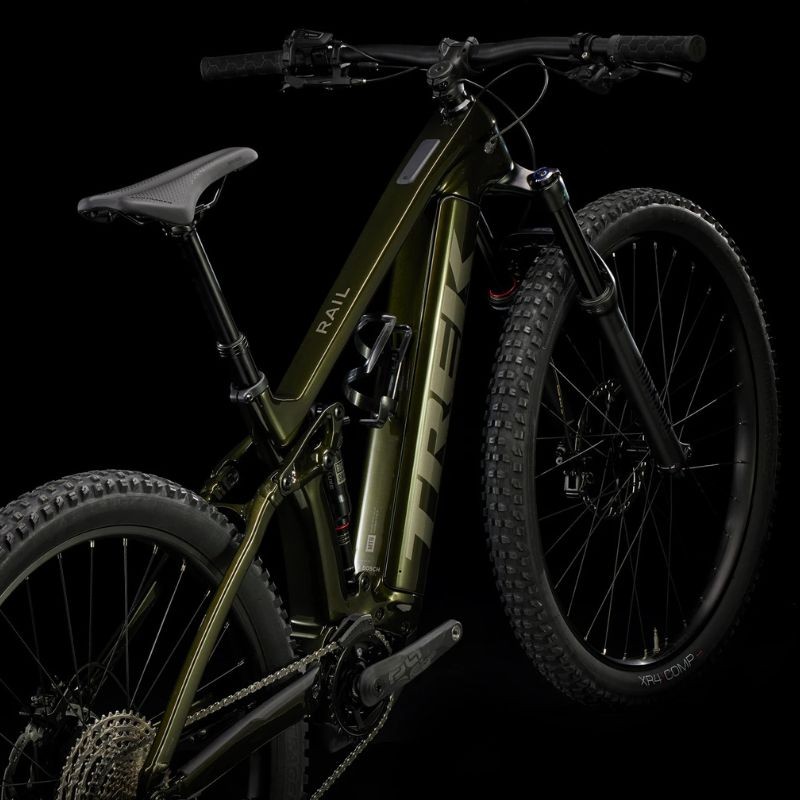

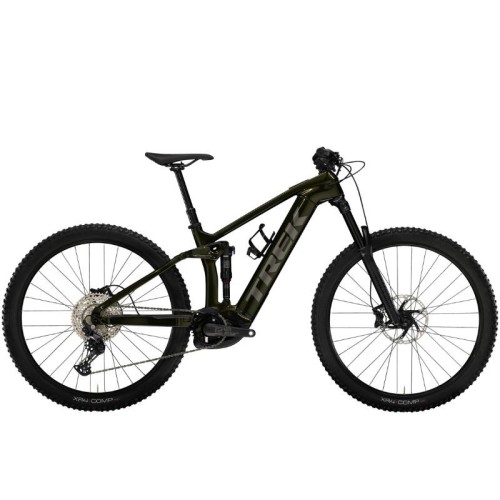

Trek Rail 9.5 Gen 4 2024 Electric Mountain Bike

Power and All-Terrain Performance

The Trek Rail 9.5 Gen 4 2024 is the ideal companion for thrill enthusiasts looking for a Electric mountain bike (VTTAE) to tame the most demanding terrain. Its lightweight and robust OCLV Mountain Carbon frame ensures optimal responsiveness in technical descents and jumps. Thanks to its advanced suspension RockShox with 160 mm of forward displacement (RockShox 35 Gold RL fork) and 150 mm at the rear (shock absorber) RockShox Deluxe Select+), this e-bike ensures efficient shock absorption and maximum stability in steep passages.

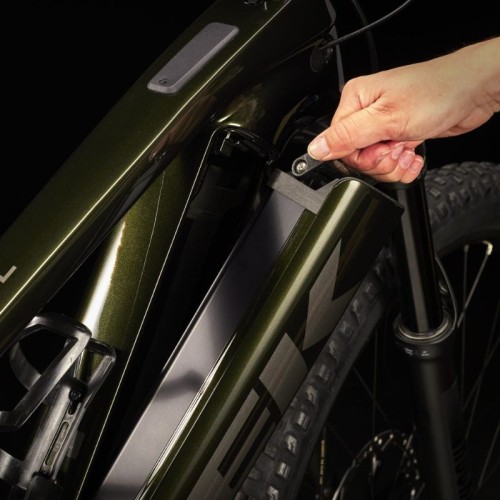

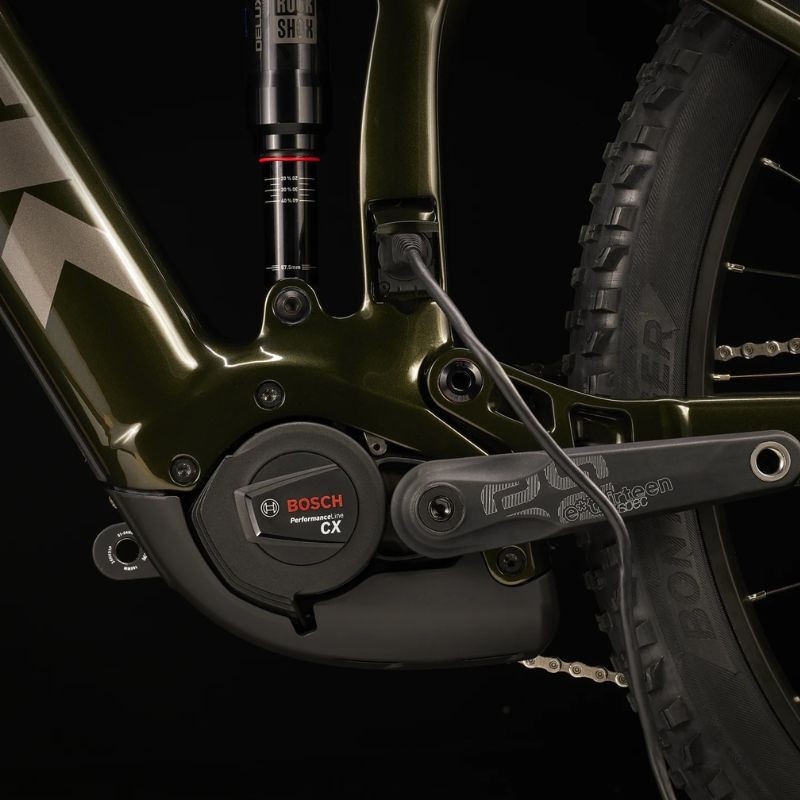

Powertrain Bosch Performance Line CX, with its 85 Nm torque, provides dynamic and progressive support, perfectly adapted to terrain variations. Its built-in 750 Wh battery allows extended outputs without fear of breakdown, while Trek's removable battery system, hidden in the frame for optimal protection, facilitates its removal without tools, also allowing the addition of abidon holder. The Rail 9.5 is designed for l'enduro and offers an ideal combination of power and endurance to tackle the most technical routes.

Intelligent Connectivity and Driving Comfort

The Bosch intelligent system on Rail 9.5 Gen 4 brings the driving experience with integrated Bluetooth connectivity, accessible via the Remote LED control, as well as the eBike Flow application, which allows you to customize the settings and track the statistics of each output. This model offers an intelligent e-bike mode that automatically adjusts the assistance power according to the terrain and has walking assistance to advance effortlessly in areas where pedalling is impossible.

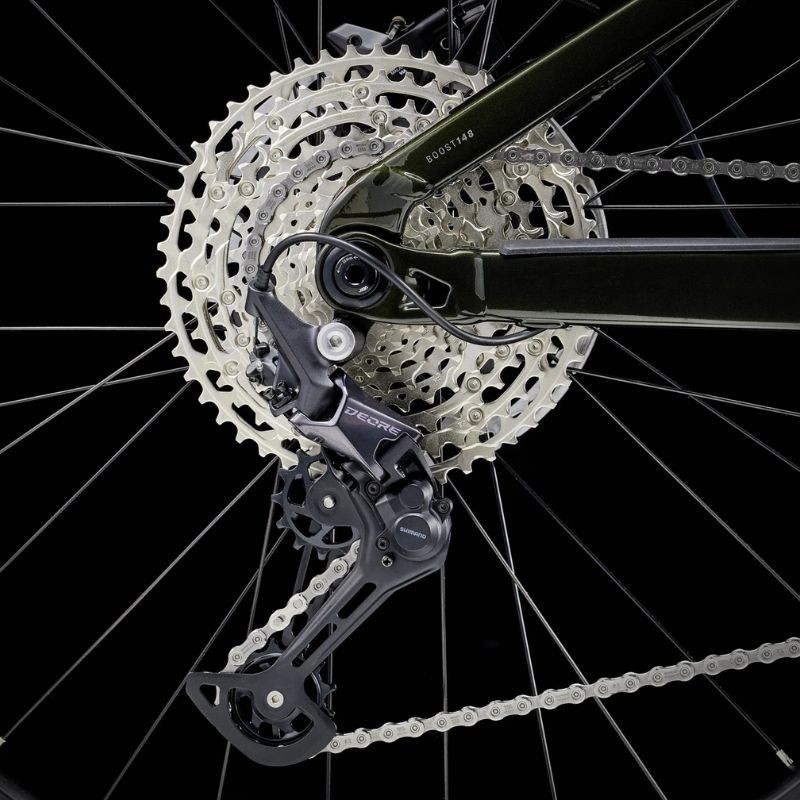

Transmission Shimano Deore 12 speeds, with 52 teeth sprocket, makes the climbs fluid and accurate, while the four-piston Tektro HD-M745 hydraulic brakes, equipped with 203 mm discs, guarantee powerful and controlled braking even in steep descents. Its 34.9 mm saddle tube, compatible with the more robust telescopic rods, and its oversized steering tube for greater precision, give the frame unrivalled stability and comfort.

Data sheet:

• Framework: Main frame in OCLV Mountain Carbon
• Fork: RockShox 35 Gold RL, 160 mm travel
• Damper: RockShox Deluxe Select+ RT, 230x57,5 mm
• Engine: Bosch Performance Line CX, 85 Nm
• Battery: Bosch PowerTube 750 Wh
• Screen: Bosch LED remote control, smart system
• Transmission: Shimano Deore M6100, 12 speeds
• Cassette: Shimano Deore M6100 10-51, 12 speeds
• Plates: Ethirteen Espec, alloy, 34 teeth, chain line 55 mm
• Pedalier: Ethirteen Espec Plus, 165 mm long
• Brakes: Tektro HD-M745, 4 pistons, 203 mm disc, 6 holes
• Wheels: Line TLR 30, Tubeless Ready, 32 holes, Presta valve, Boost110 (front) and Boost148 (back), cross axis
• Tires: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength flanks, aramid rod, 120 tpi, 29x2,40 inches (max. : 29x2,60 inches)
• Saddle: Arvada bontrage, steel rails, 138 mm width
• Saddle stiff: 150 mm
• Guidon: Alloy Bontrater, 31.8 mm, elevation 15 mm, width 750 mm
• Pedals: VP-536, platform, nylon
• Weight: 24.23 kg
