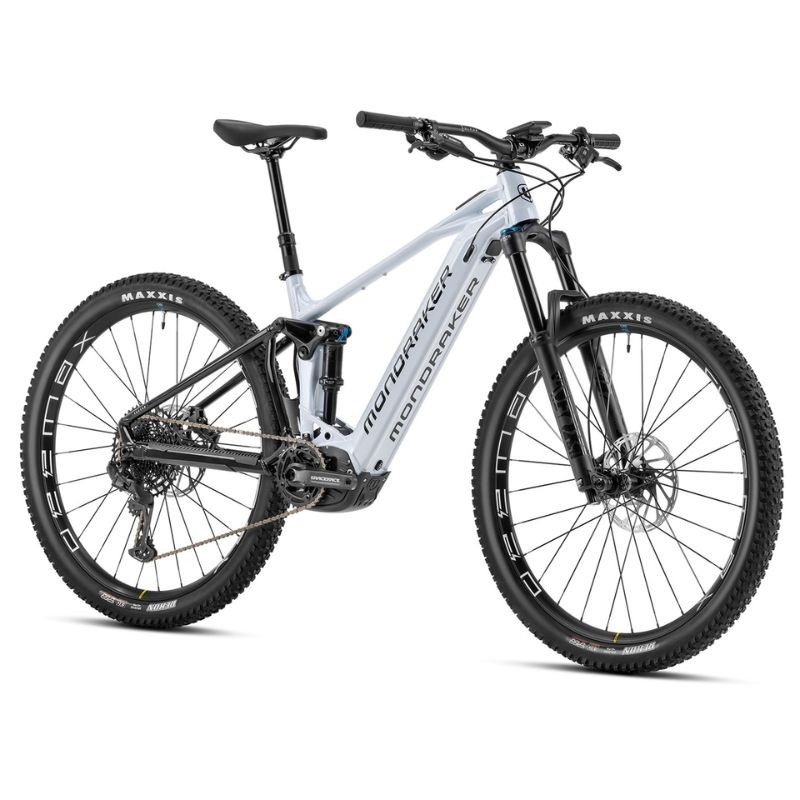

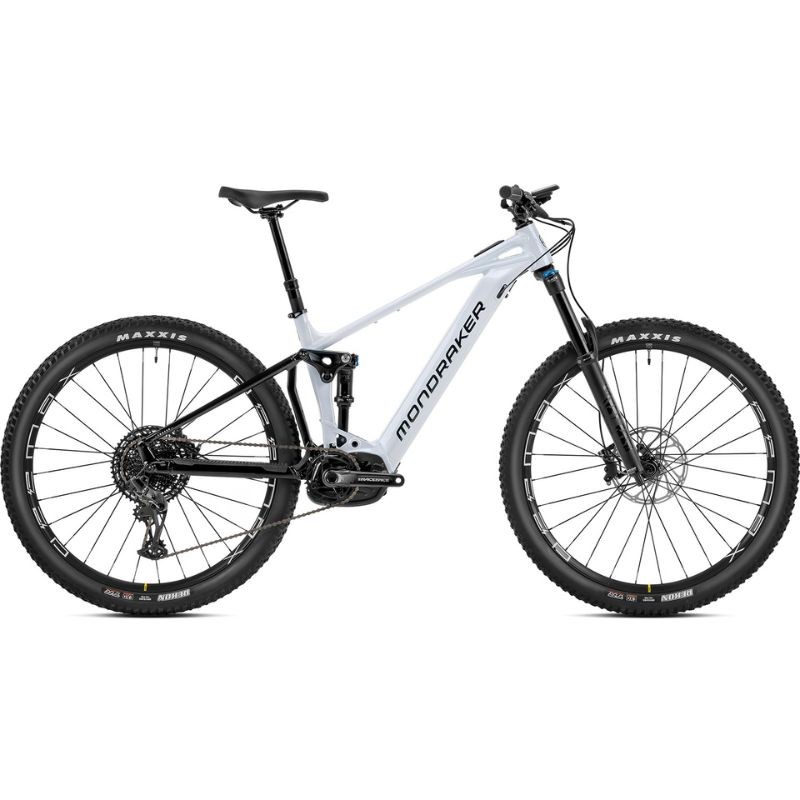

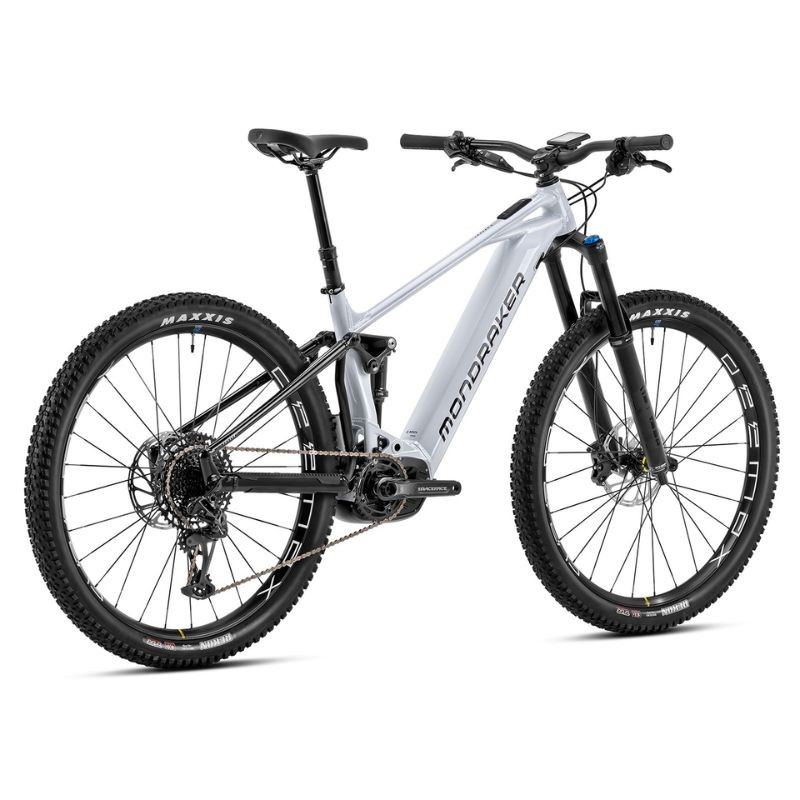

Mondraker Chaser R 2023 electric mountain bike

Mondraker Chaser R 2023: Excellence in accessible e-bike

The Mondraker Chaser R 2023 is a e-bike designed to exceed your limits on the most demanding terrains. Its Stealth Alloy Evo 6061 aluminum frame, combined with the innovative Forward Geometry geometry, offers exemplary stability and manoeuvrability. Thanks to the ZERO suspension system and generous rides (150 mm at the rear, 160 mm at the front with the Fox 36 Float FIT GRIP EVOL Rhythm), this bike excels in technical climbs, descents and difficult crossings. Its wheels Mavic E-Deemax 29 inches Tubeless and its tires Maxxis Rekon 29 x 2,6 ensure optimal grip and robustness for all terrains.

How is the Mondraker Chaser R 2023 electric bike equipped?

Engine equipped Bosch Performance Line CX Smart System and a built-in Bosch Powertube 750 Wh battery, the Chaser R offers powerful support and an ideal range for long outputs. The Intuvia 100 screen and Mini Remote remote control allow intuitive support mode management. Its 12-speed Sram GX Eagle transmission guarantees fluid velocities, while the Sram DB8 hydraulic brakes provide complete control even in extreme conditions. With its optimised comfort (telescopic saddle top and wide hanger) and neat finishes, this e-bike is the ideal companion for performance lovers at controlled prices.

Data sheet

• Framework : Stealth Evo Chaser in 6061 aluminium, Zero suspension system optimized for electric bikes, 150 mm travel
• Fork : Fox 36 29 Float FIT GRIP EVOL Rhythm, 160 mm
• Shock absorber : Fox Float DPS Performance, 205 x 65 mm, settings: compression 3 positions
• Engine : Bosch Performance Line CX (25 km/h) Smart System
• Battery : Bosch Powertube 750 Wh
• Screen : Bosch Intuvia 100 with Bosch mini control system and Bosch system controller
• Transmission : Sram GX Eagle, 12 speeds, Roller Bearing Clutch type 3, Chase blocking technology, X-Actuation 1:1
• Cassette : Sram PG-1210, 11-50 teeth, 12 speeds
• Plateaux : Sram X-Sync 2 Eagle, 34 teeth, steel, small width, BCD 104
• Pedal : Race Face Effect ebike, crank 165 mm
• Freins : SRAM DB8, 4-piston calipers, Centerline 200 mm IS single-piece discs, organic pads
• Wheels : Mavic E-Deemax 29 wheels, 30 mm inside width, Tubeless Ready, Boost hubs, ID360 rocker system
• Tires : Maxxis Rekon 29 x 2,6, Tubeless Ready, double compound, Exo protection, 60 TPI
• Selle : MDK ebike Black
• Saddle : Onoff Pija internal telescopic stem, diameter 31.6 mm, travel according to size: 95-125 mm (S), 120-150 mm (M), 140-170 mm (L and XL)
• Guidon Onoff Sulfur 1.0, 6061 aluminium, 20 mm sill, 800 mm width, 9° bending, 5° enhancement
• Weight : 24,7 kg
