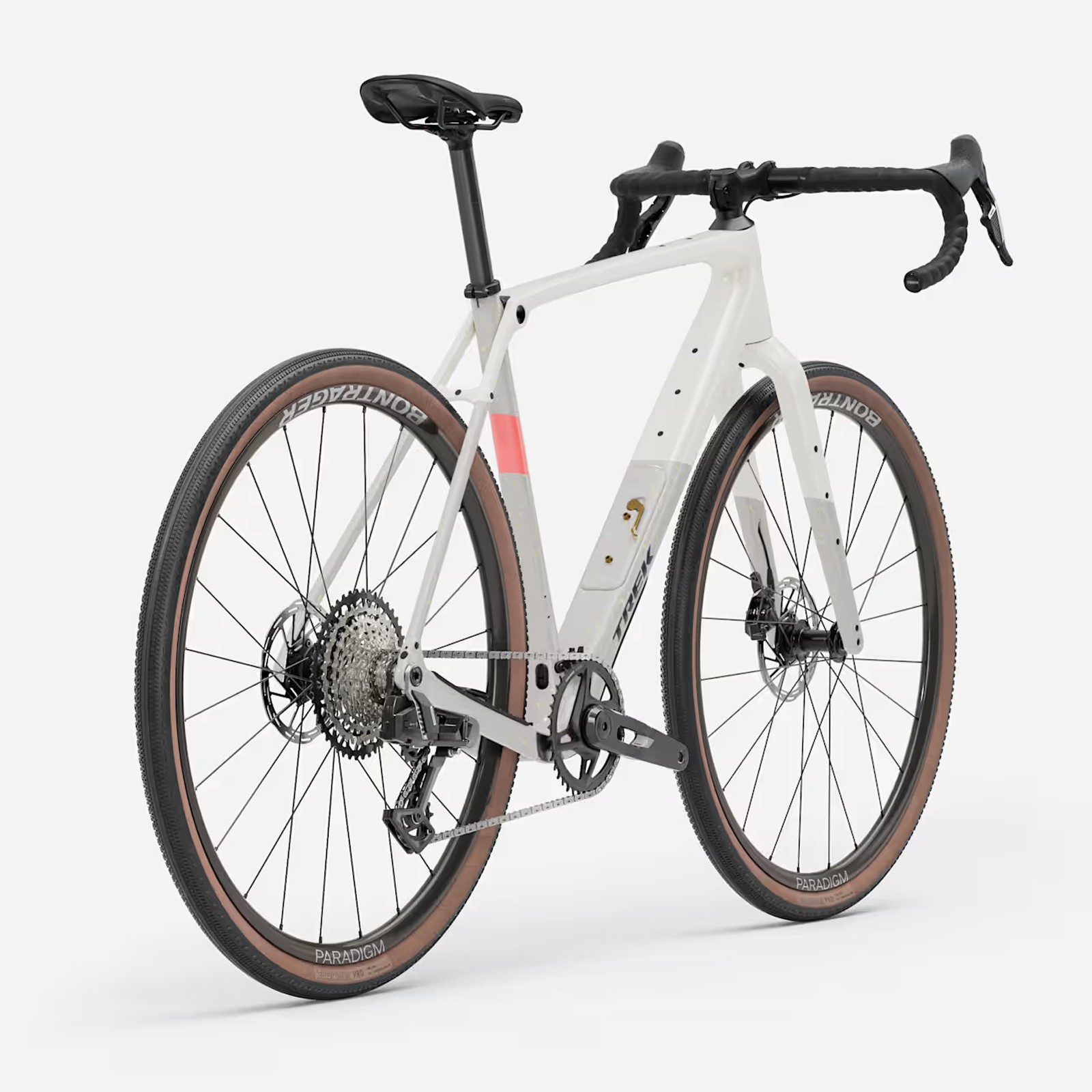

Trek Checkpoint SL 6 Gen.3 Rival XPLR AXS 13s Era White / Buff Beige gravel bike 2026

Trek Checkpoint SL 6 AXS 3rd generation Era White / Buff Beige 2026

Carbon gravel bike bike designed for adventure, featuring a SRAM Rival XPLR AXS 13-speed electronic drivetrain , a comfortable IsoSpeed frame and great versatility for long distances.

Reliable and high-performance carbon gravel bike bike with wireless drivetrain , wide tire clearance and endurance-oriented equipment.

Frame

• OCLV Carbon 500 Series
• IsoSpeed system for vibration absorption
• Integrated storage in the down tube

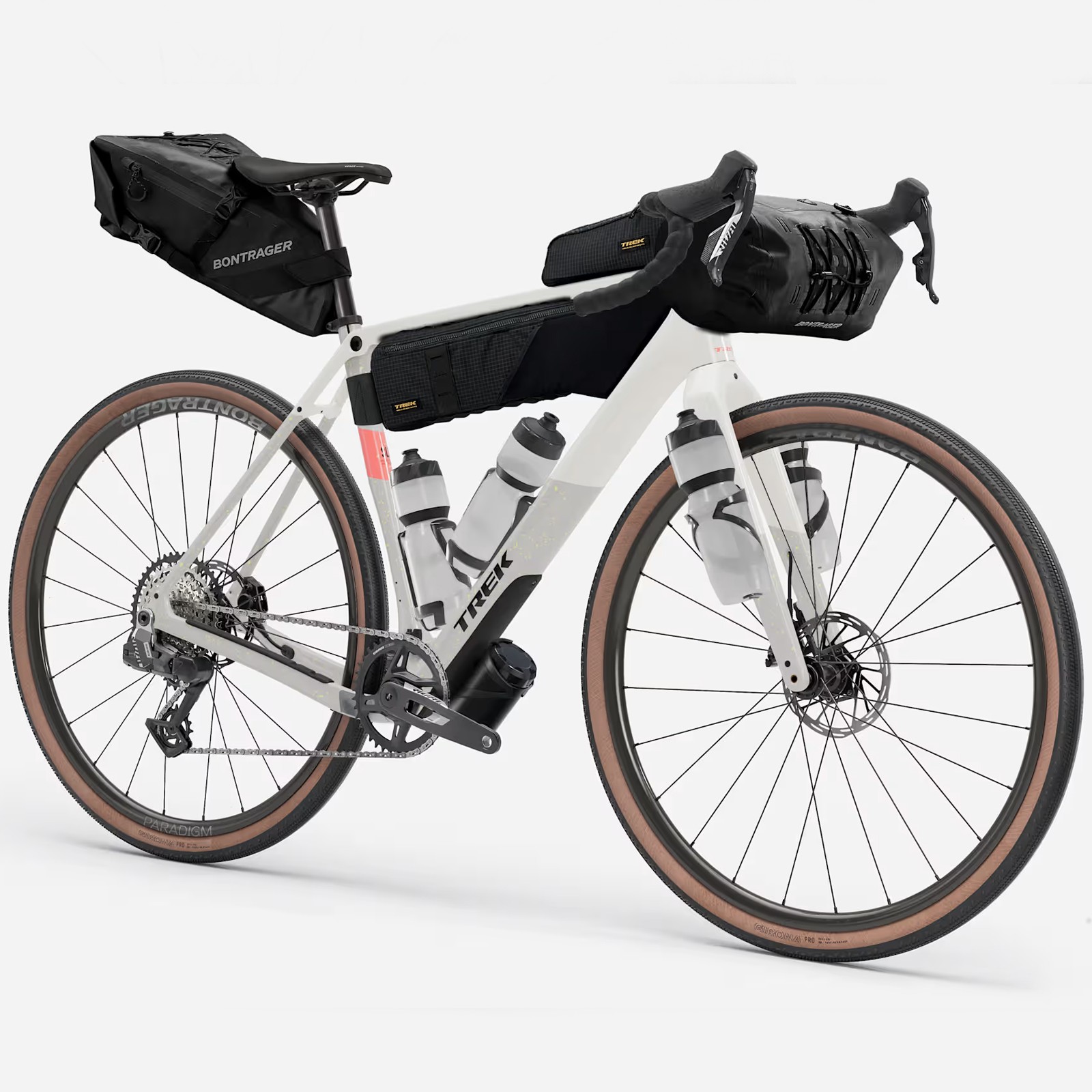

• Multiple mounting options: mudguards, luggage racks, panniers
• RCS Headset
• Invisible internal cable routing
• Threaded T47 Bottom bracket
• Flat Mount rotor Brakes
• Removable front derailleur support
• UDH paw
• 142 x 12 mm Thru axle

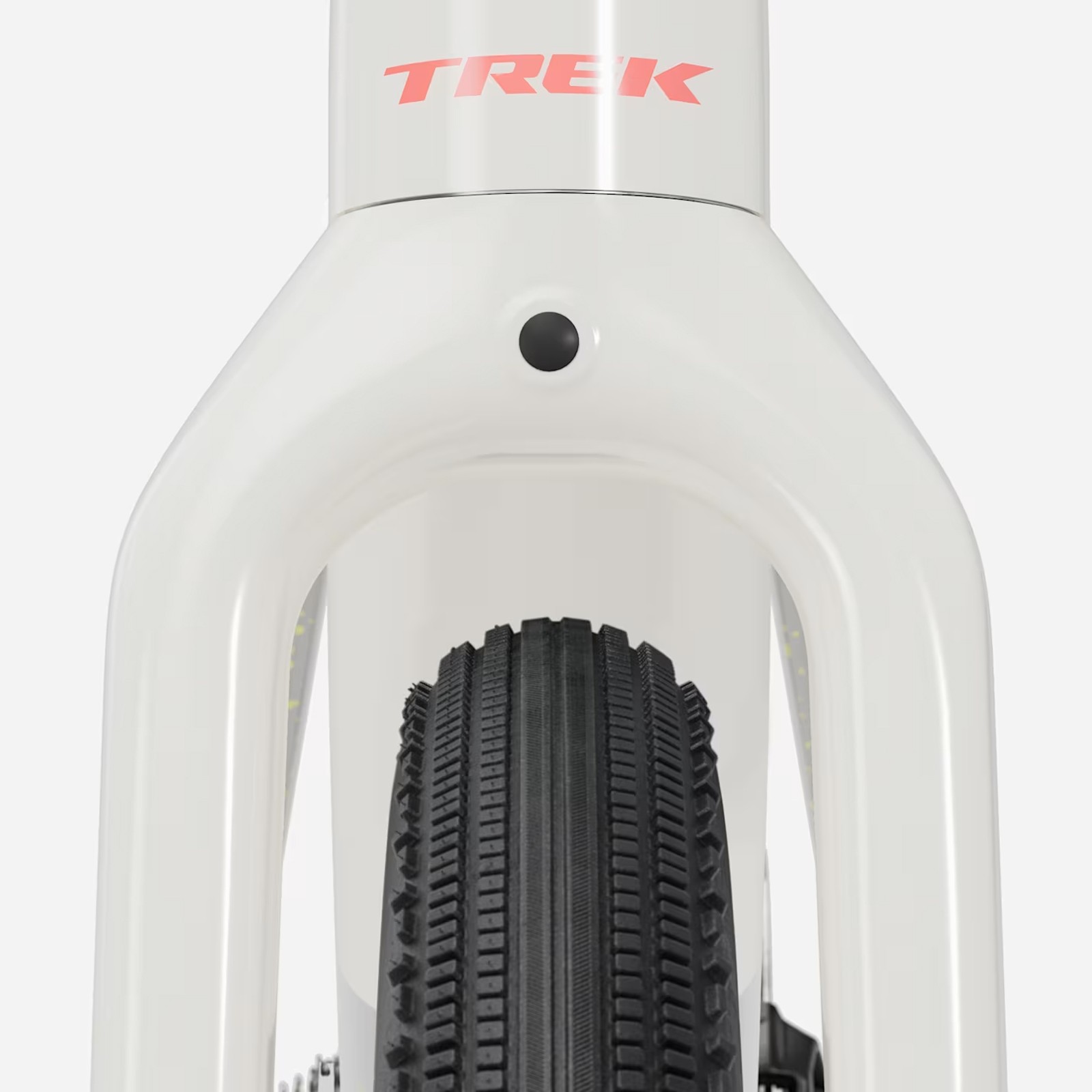

Fork

• All carbon Trek Checkpoint
• Carbon Tapered headset
• Luggage rack and mudguard attachments
• Flat Mount Brakes
• 12 x 100 mm Thru axle

Electrical system

• SRAM AXS battery with charger

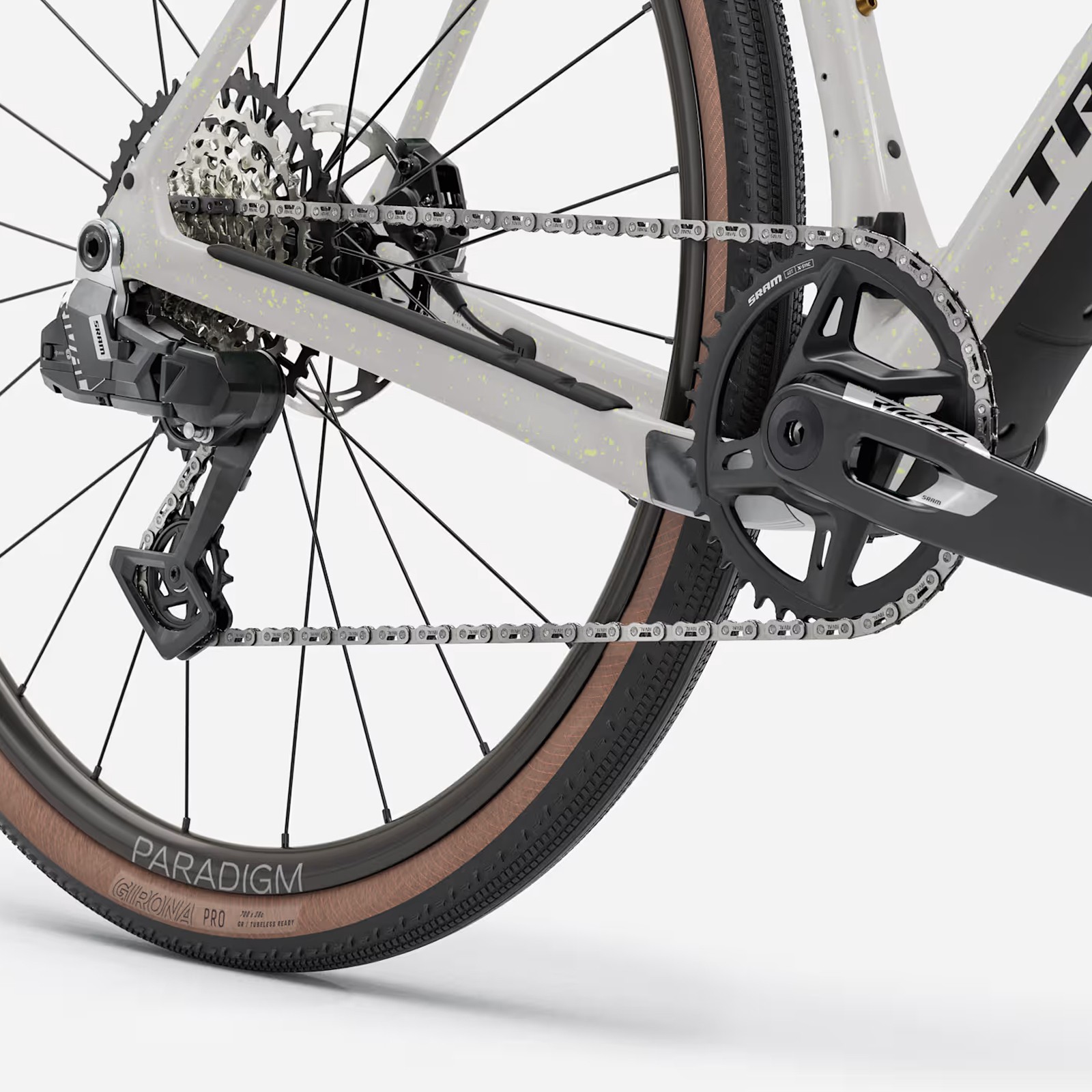

SRAM Rival XPLR AXS 13-speed Drivetrain

• SRAM Rival XPLR AXS Rear derailleur (max 46 teeth)
• SRAM Rival XPLR 40-tooth DUB Wide Crankset
• Lengths: 160 / 165 / 170 mm depending on size
• SRAM DUB Wide T47 threaded bottom bracket
• SRAM XG-1351 10-46 Cassette ( 13s )

Wheels

• Bontrager Paradigm Comp 25
• Tubeless Ready
• Internal width 25 mm
• 100x12 / 142x12 mm thru axle hubs
• SRAM XD-R Freehub body

Tires

• Bontrager Girona Pro 700x42mm
• Tubeless Ready with puncture protection
• Compatible with tires up to 50 mm (without mudguards)
• Up to 42 mm with mudguard

Braking

• Hydraulic rotor brakes
• Compatible with discs up to 180 mm

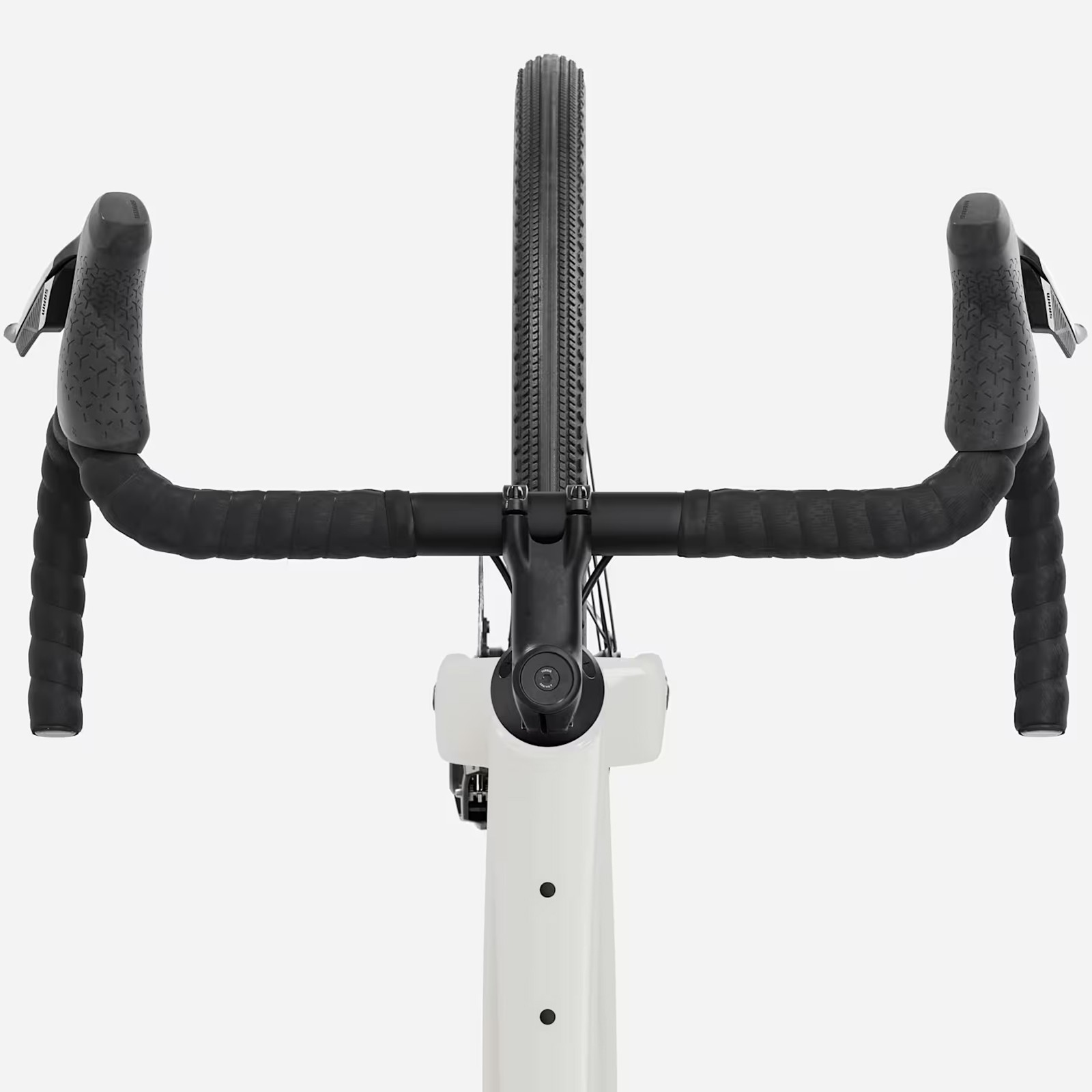

Cockpit and components

• Bontrager Elite Gravel bike aluminum Handlebar
• Width: 40 to 46 cm depending on size
• Bontrager Pro Blendr compatible Stem (-7°)
• Bontrager Supertack Perf Tape

Saddle and seatpost

• Verse Short Comp Saddle (steel rails, 145 mm)
• Bontrager carbon Seatpost 27.2mm (8mm offset)

Weight

• 9.49 kg (ML size with TLR fluid, without inner tubes)
• Maximum total weight: 125 kg (bike + cyclist + luggage)

Summary

High-performance gravel bike Assembly with SRAM Rival XPLR AXS 13-speed drivetrain , comfortable IsoSpeed frame and great adaptability for bikepacking and long rides.
