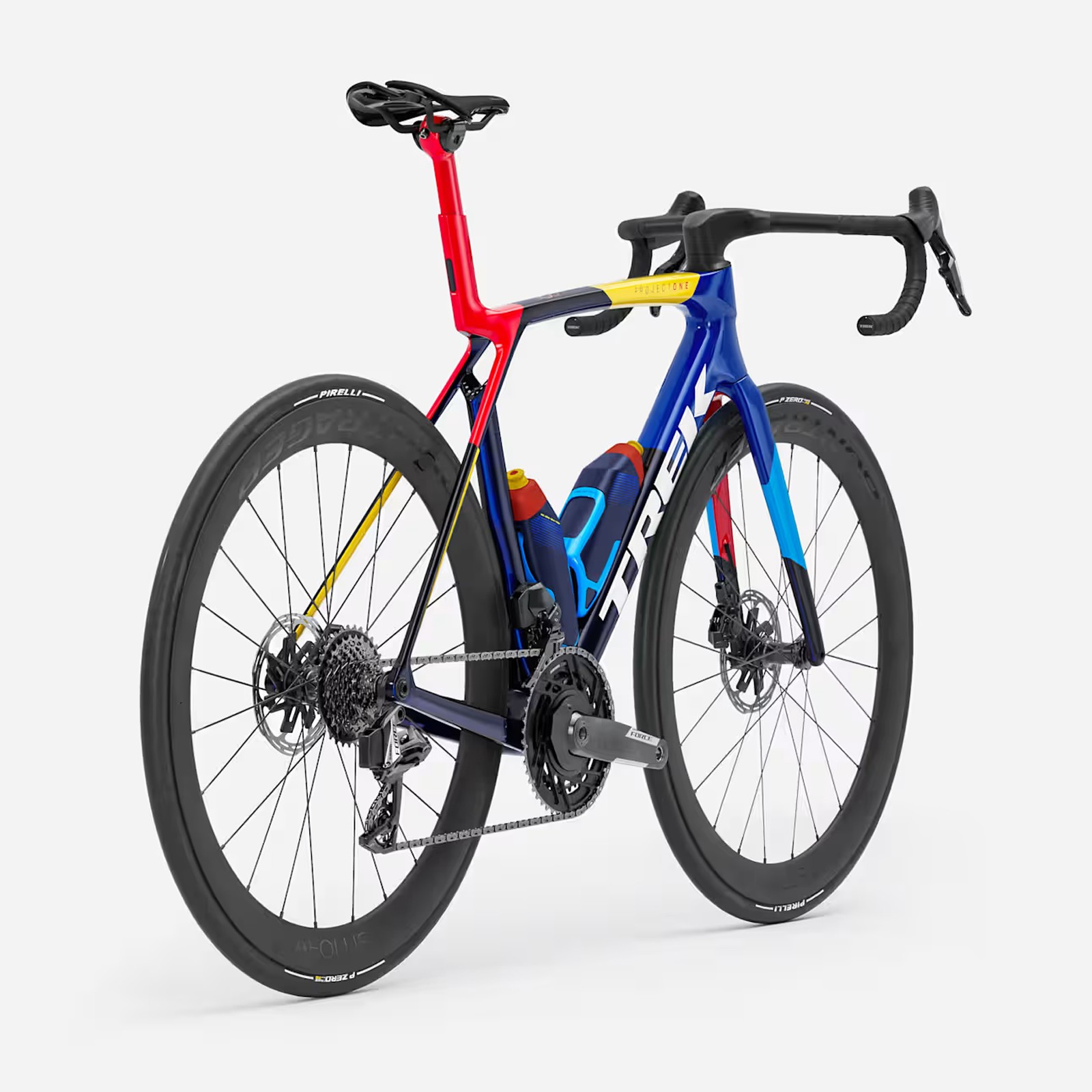

Trek Madone SLR 7 Gen.8 Force AXS E1 Team Replica Carbon Road Bike 2026

Trek Madone SLR 7 8th Generation Team Replica SRAM Force eTap AXS E1 12-speed 2026

Ultralight and aerodynamic Road Bike designed for competition, equipped with a 900 Series OCLV carbon frame , SRAM Force AXS electronic drivetrain with power meter and an integrated carbon cockpit.

Performance-oriented carbon road Bike with wireless electronic groupset, carbon wheels and one-piece cockpit.

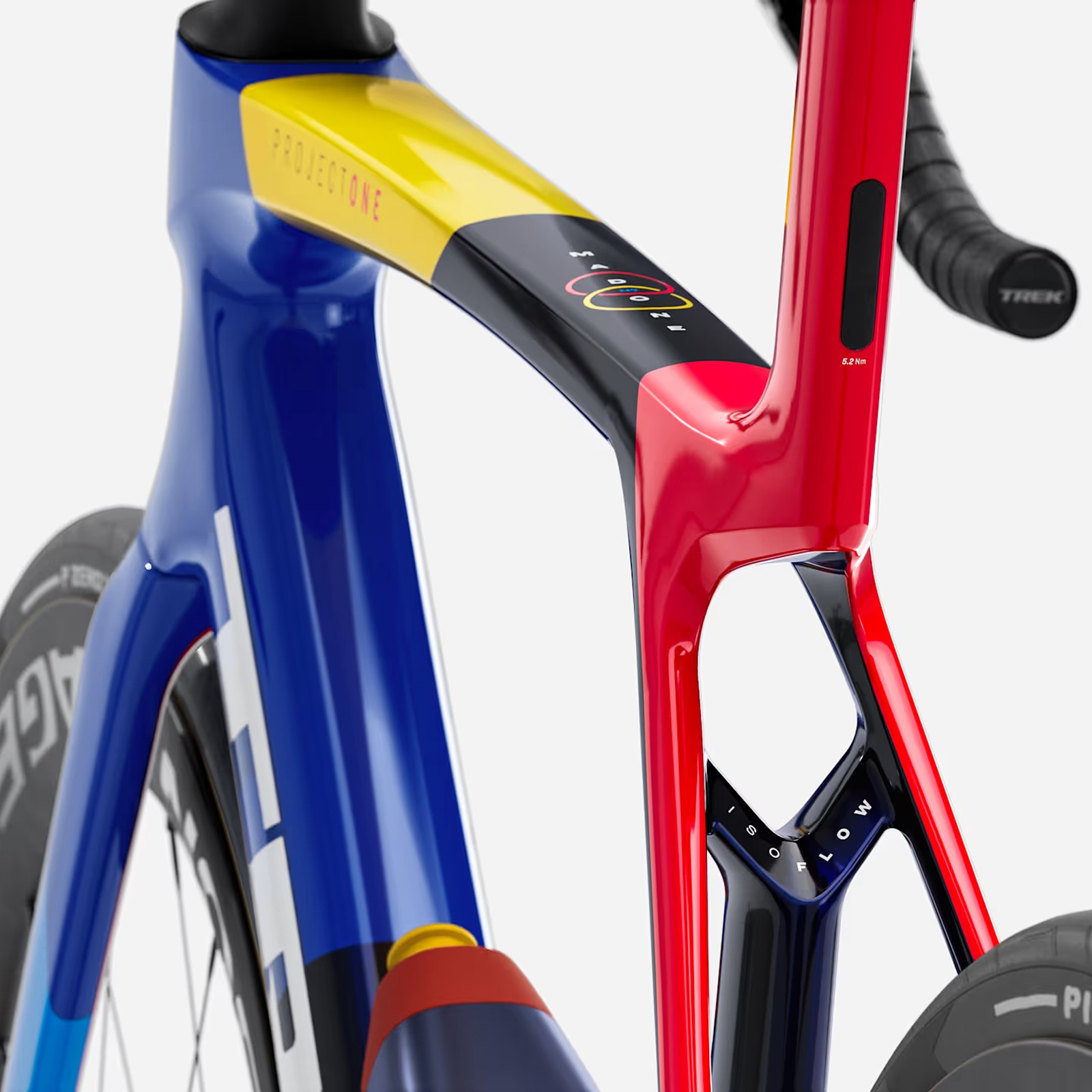

Frame

• OCLV Carbon 900 Series
• Full System Foil Aerodynamic Profile
• IsoFlow saddle tube
• RCS Headset
• Electronic delivery only
• Threaded T47 Bottom bracket
• Flat Mount rotor Brakes
• Universal Derailleur hanger (UDH)
• 142 x 12 mm Thru axle

Fork

• All carbon Madone 8th generation
• Carbon Tapered headset
• Internal cable routing
• Flat Mount Brakes
• 12 x 100 mm Thru axle

Electrical system

• SRAM AXS battery with charger

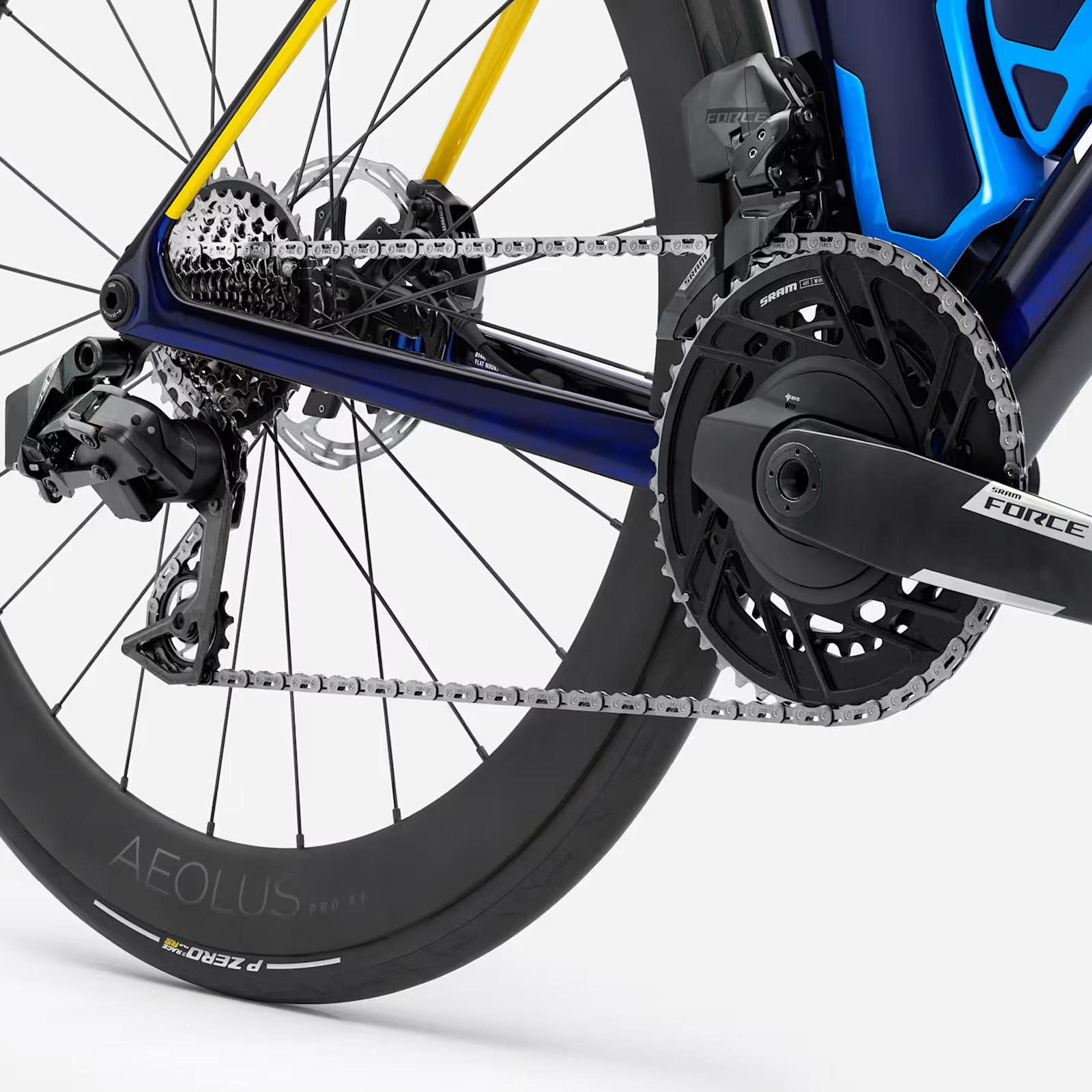

SRAM Force AXS 12-speed Drivetrain

• SRAM Force AXS E1 shifters
• SRAM Force AXS Front derailleur (solder-on)
• SRAM Force AXS Rear derailleur (max 36 teeth)
• SRAM Force AXS Crankset with 48/35 power meter
• Lengths: 160 / 165 / 170 / 172.5 mm depending on size
• SRAM DUB T47 threaded bottom bracket
• SRAM Force XG-1270 10-33 Cassette
• SRAM Force E1 Chain

Bontrager carbon wheels

• Bontrager Aeolus Pro 51 carbon OCLV
• 51 mm rim profile
• Tubeless Ready
• 100x12 / 142x12 mm thru axle hubs
• Shimano or SRAM XD-R Freehub body depending on assembly

Tires

• Pirelli P Zero Race TLR RS 700x28mm
• Or Bontrager Aeolus RSL RD cotton 170 tpi
• Pirelli SmarTube TPU chamber included
• Compatible with tires up to 32 mm

Braking

• SRAM Force AXS hydraulic brakes
• SRAM CenterLine X Centerlock 160mm rotors

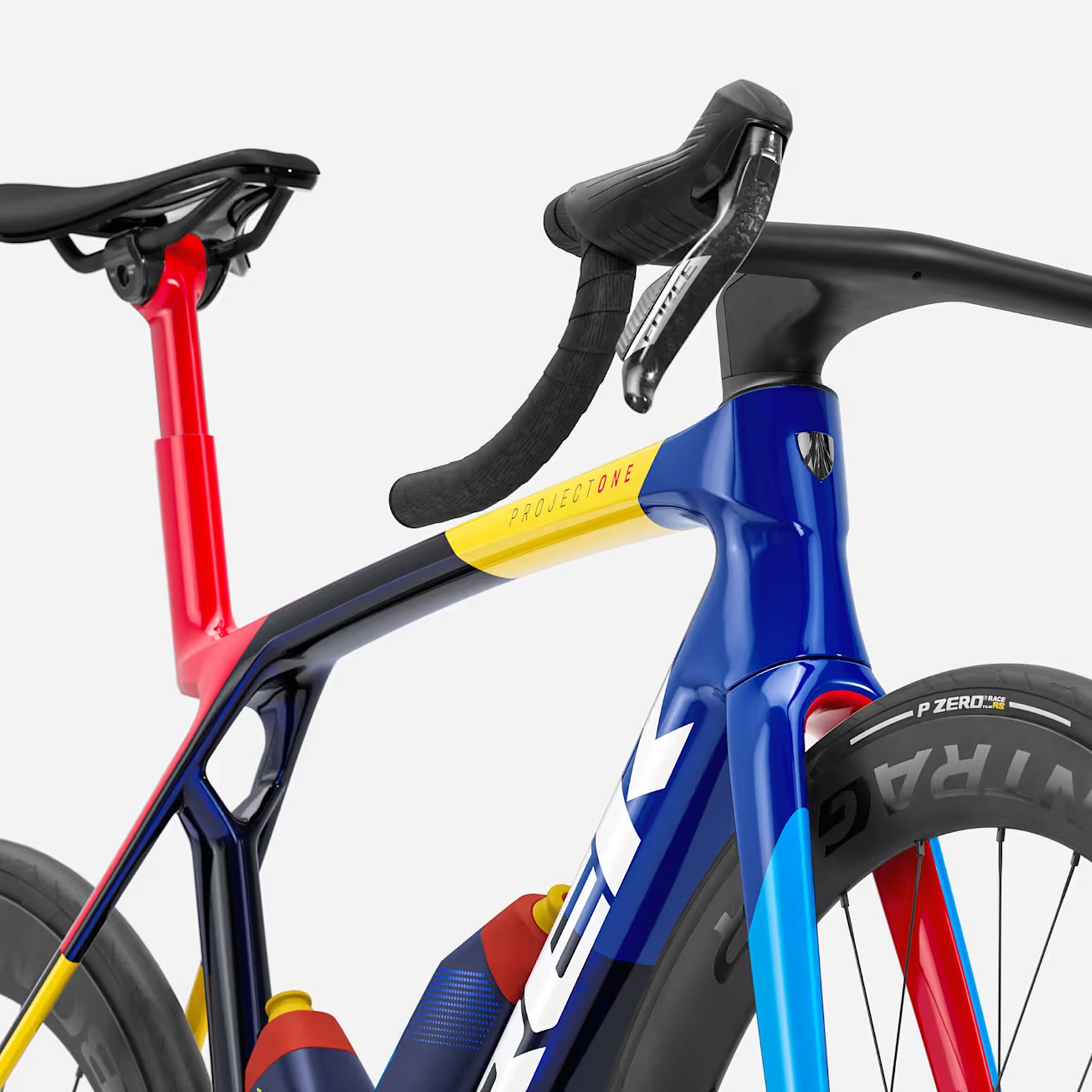

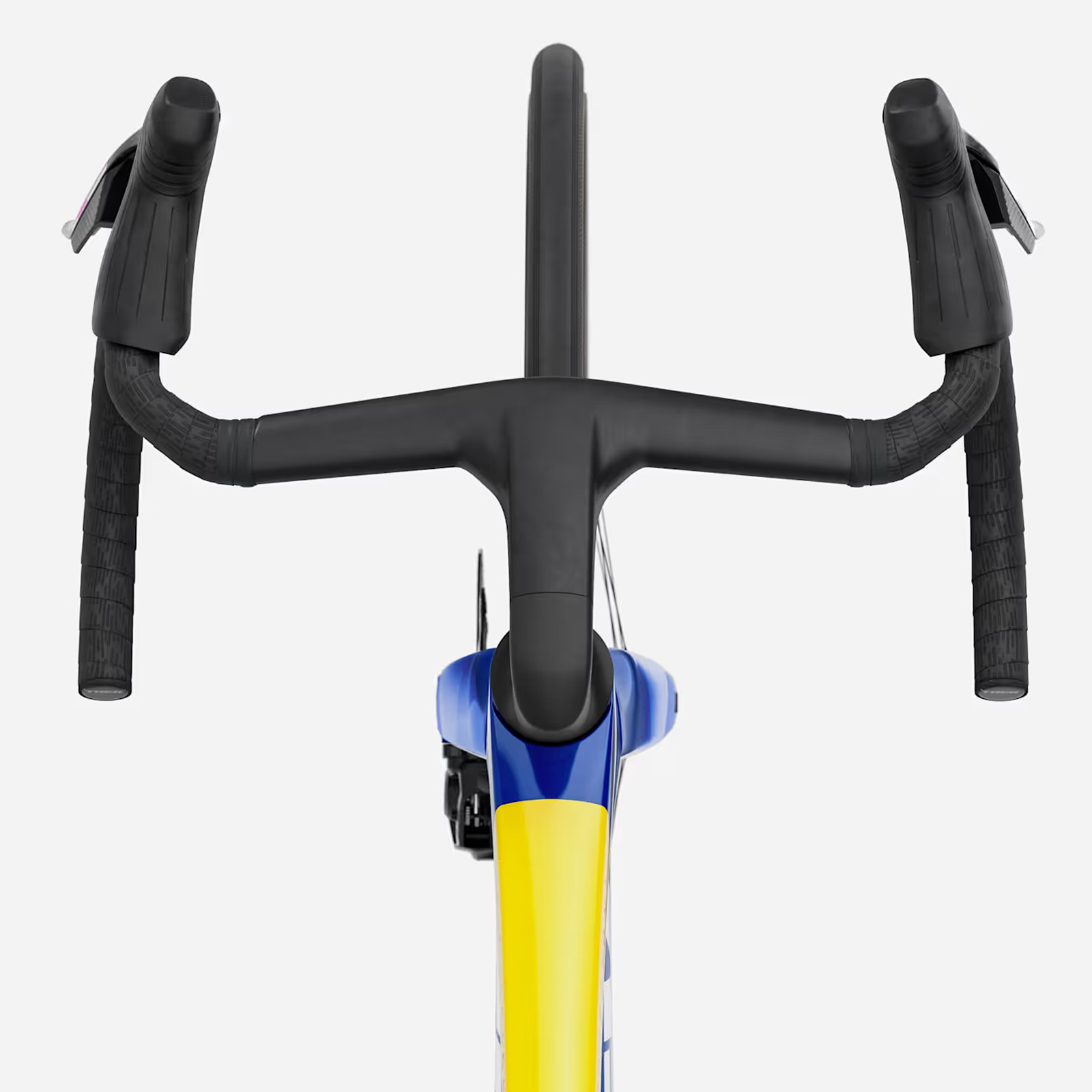

Integrated carbon cockpit

• Trek Aero RSL one-piece OCLV carbon Handlebar / stem
• Aerodynamic Race Fit design
• Width 35 to 44 cm depending on size
• stem length 80 to 110 mm
• complete internal routing

Saddle and seatpost

• Bontrager Aeolus Pro Saddle carbon rails (145 mm)
• Madone aerodynamic Seatpost with 0 mm offset

Weight

• 7.22 kg (ML size with TLR liquid, without inner tubes or water bottles)
• Maximum total weight: 125 kg (bike + cyclist + equipment)

Summary

High-end Assembly with OCLV Series 900 frame , SRAM Force AXS drivetrain with power meter, Aeolus Pro 51 carbon wheels and integrated cockpit: an ultra-light and ultra-high-performance racing bike.
