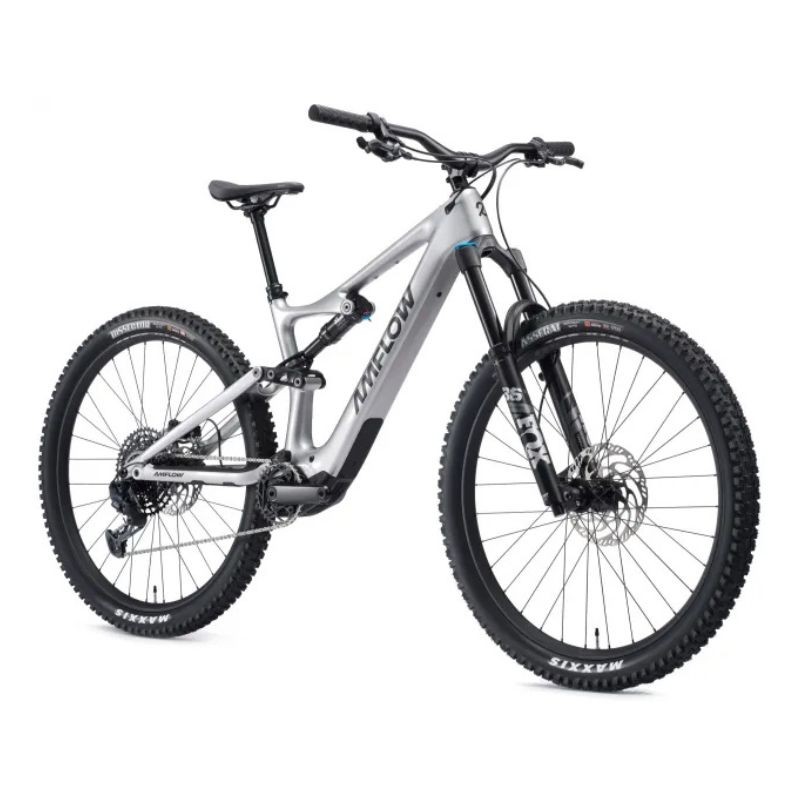

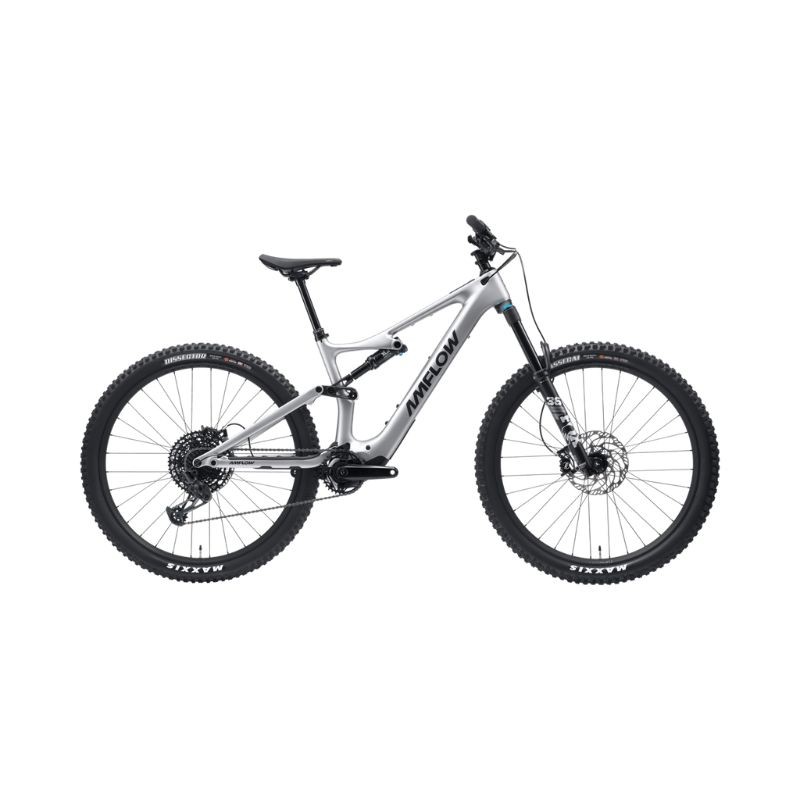

Amflow PL Carbon Electric Mountain Bike

Amflow PL Carbon electric bike: power and versatility on the trail

L’Amflow PL Carbon is a real concentrate of technology and performance. Designed for mountain bike enthusiasts looking for power, lightness and responsiveness, this all-suspend carbon electric bike allows you to push your limits. Its 105 Nm DJI Avinox engine offers dynamic support with state-of-the-art sensors and software, adapting to all situations in the field. In Boost mode, take advantage of maximum assistance of up to 120 Nm and 1000 W, to climb the steepest slopes with a disconcerting ease.

Thanks to a perfect combination of high-end components, such as Fox Performance 160/150 mm suspension and transmission SRAM GX Eagle with 12 speeds, this mountain bike guarantees smooth and precise performance on all types of trails. The 4-piston Magura MT5 brakes ensure a powerful and constant braking, even in the most technical descents. After an intense session, the 800 Wh DJI Avinox Intube battery quickly recharges with a 12A charger, putting you back in the saddle in no time.

With its ultra-light carbon frame and impressive specifications, the Amflow PL Carbon is the ideal choice for demanding trail enthusiasts.

Data sheet

• Type of electric bicycle : ATVAE light, ATVAE all-suspendu, electric ATV
• Form of framework : Male
• Battery capacity : 800 Wh - 899 Wh
• Derailer/type of transmission : Derailleur – chain
• Battery position : Intubated / integrated battery
• Training system : DJI Avinox
• Manufacturer : Amflow
• Engine : Training unit Avinox M1, 105 Nm
• Framework : Amflow PL carbon frame
• Fork : FOX 36 Float 29" Factory, 160 mm travel, axis 15x110 mm
• Shock absorber : FOX Float Performance, size 185 × 55 mm, Custom Tune, EVOL air case, 2-position lever
• Discussion : Front : 160 mm
• Battery : Avinox integrated battery : 800 Wh
• Charger : Avinox Quick Charger : 12 A/508 W
• Screen : Avinox OLED touch screen, 2 inches
• Wheels : Amflow HMA-30, Alloy, 29", internal width 30 mm, 32 holes, Tubeless Ready, SAPIM rays E-Light J-bend
• Tires :
  • Front: Maxxis Assegai MaxxTerra 29 × 2.5" WT 3C EXO E-25 TLR
  • Back: Maxxis Dissector MaxxTerra 29 × 2.4" WT 3C EXO+ E-25 TLR
• Selle : Royal saddle SRX Plus
• Saddle : KS Rage-i
• Potency : Amflow Enduro post, CNC milling, 35 mm length, 35 mm clamping
• Guidon : Amflow Enduro carbon handlebar, height 25 mm, width 800 mm
• Handle : DJI Avinox SL (M/L: 155 mm; XL/XXL: 160 mm)
• Cassette : SRAM PG-1230, 11-50T
• Derailer : SRAM GX Eagle, 12 speeds
• Chain : SRAM NX Eagle
• Speed lever : SRAM GX Eagle Trigger Shifter
• Freins : Magura MT5 hydraulic disc brakes, 4 pistons
  • Discs : Rotor Magura MDR-C, 203 mm
• Handles : Amflow Enduro handles
• Peldals : Mountain bike pedals
• Lighting :
  • Front: Light to pin
  • Back: Light to pin
• GPS : Integrated
• Accessories : Dynamometer key (3~25 N-m, Hex 2/3/4/5/6 mm, Torx® 25), shock absorber pump

Choosing the size of your bike is essential all our advice in our guide !
