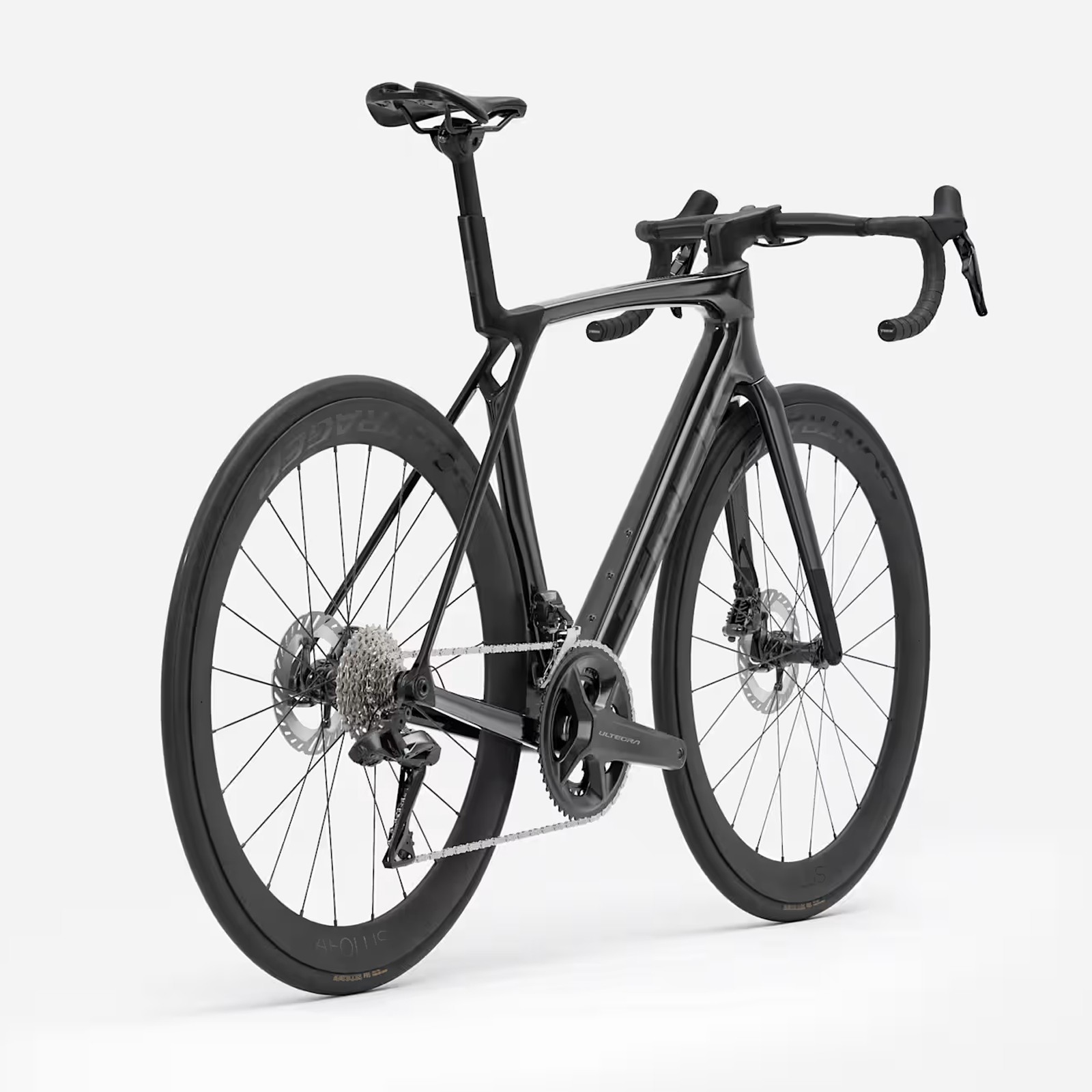

Trek Madone SL 7 Gen.8 Ultegra Di2 12s Gloss Dark Star / Matte Deep Smoke carbon road Bike 2026

Trek Madone SL 7 8th Generation 2026 – Gloss Dark Star / Matte Deep Smoke

High-end aerodynamic carbon Road Bike , equipped with Shimano Ultegra Di2 electronic drivetrain and carbon components for maximum performance and lightness.

Carbon road Bike with Di2 electronic groupset, carbon wheels and carbon cockpit for a competition-oriented setup.

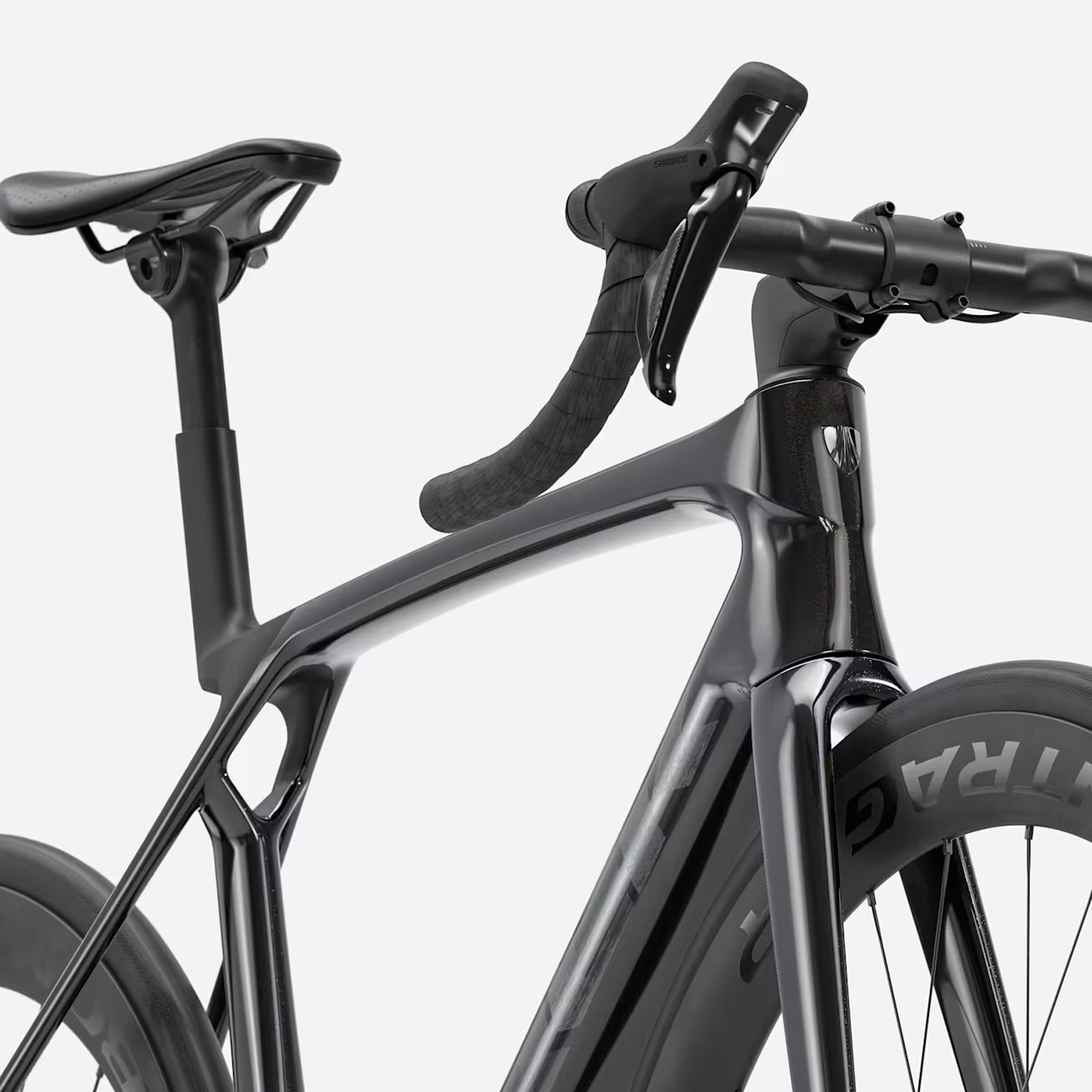

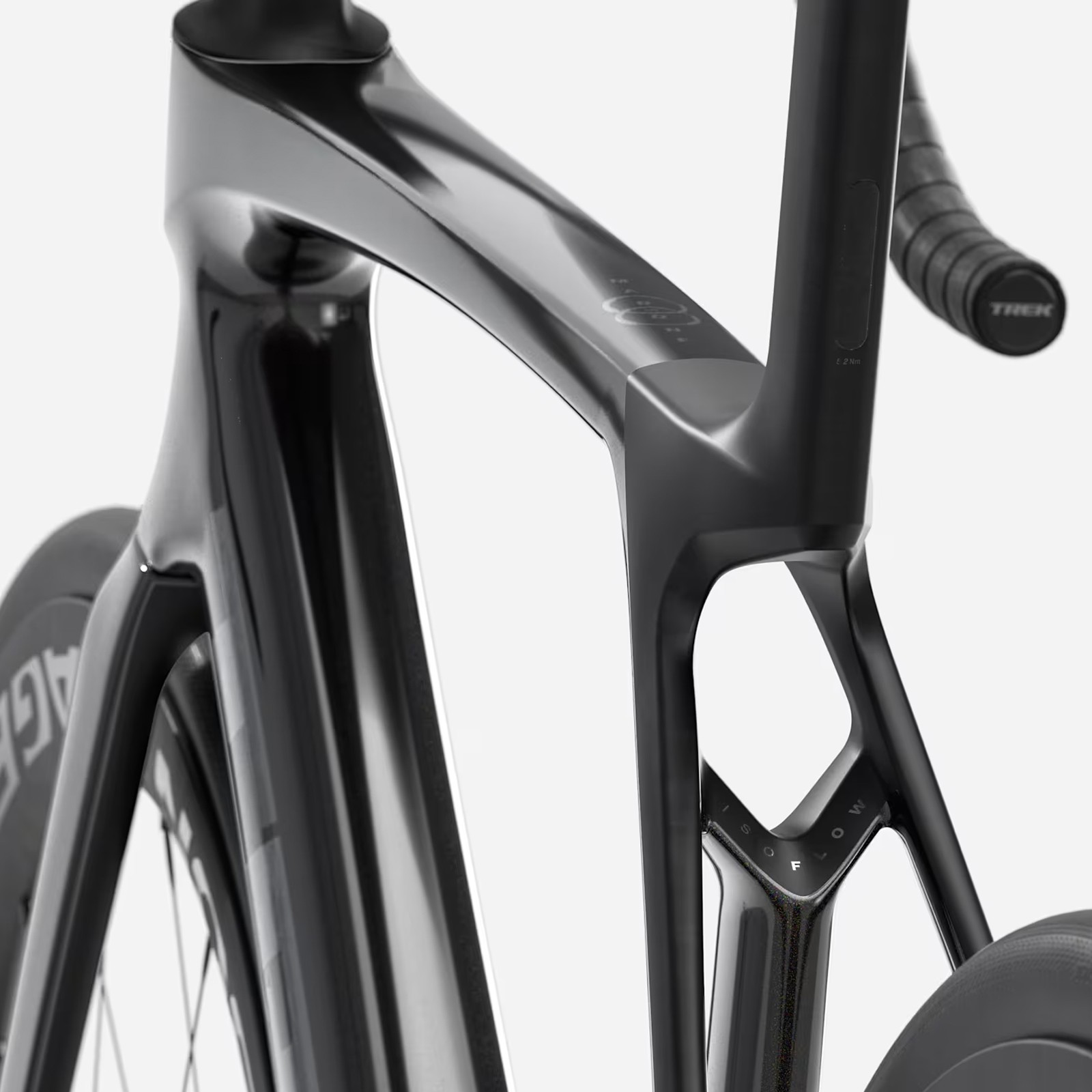

Frame

• OCLV Carbon 500 Series
• Full System Foil Aerodynamic Profile
• IsoFlow saddle tube
• RCS Headset
• Internal electronic or mechanical routing
• Removable aerodynamic chain guard
• Threaded T47 Bottom bracket
• Flat Mount rotor Brakes
• Universal Derailleur hanger (UDH)
• 142 x 12 mm Thru axle

Fork

• All carbon Madone 8th generation
• Carbon tapered head tube
• Internal cable routing
• Flat Mount Brakes
• 12 x 100 mm Thru axle

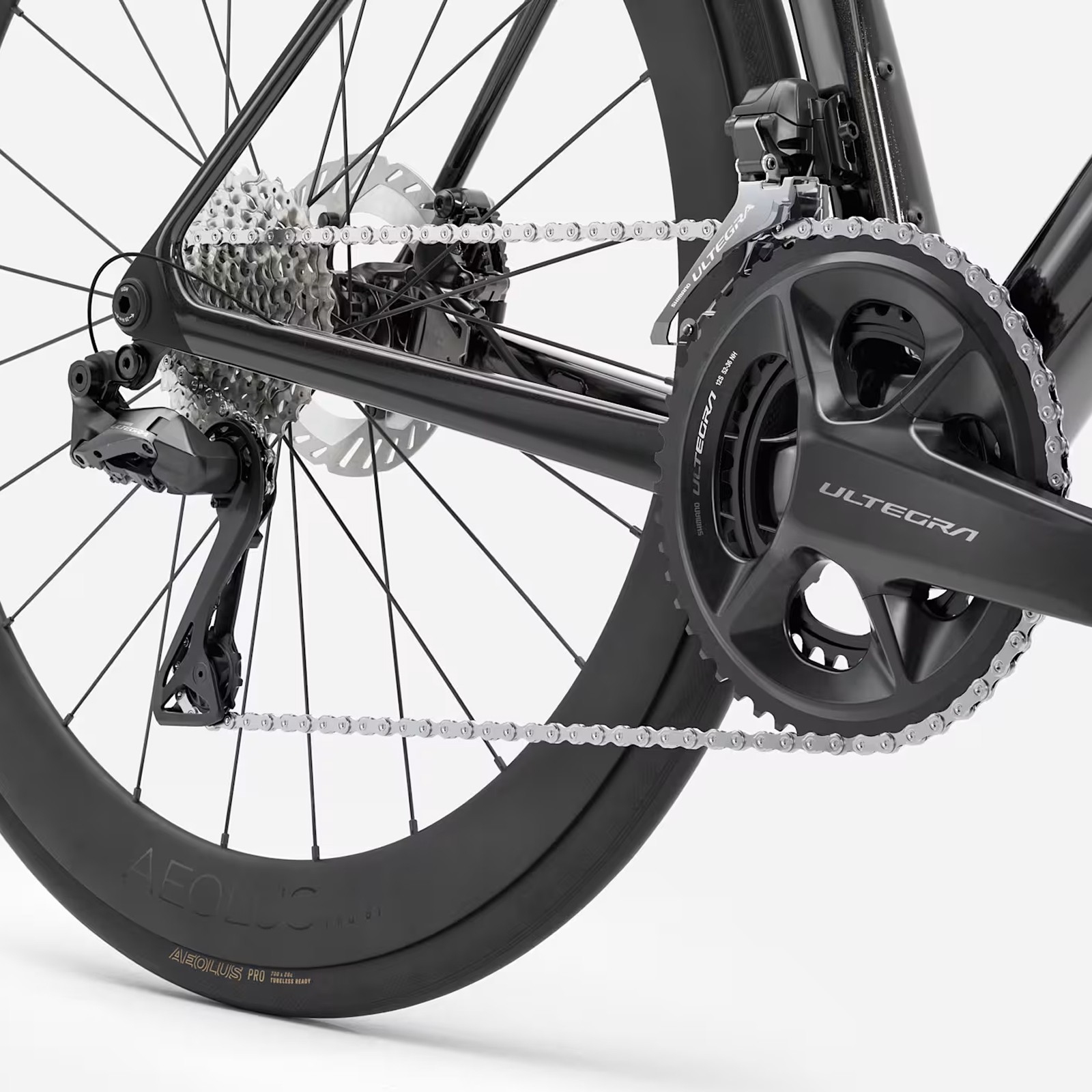

Shimano Ultegra Di2 12-speed Drivetrain

• Shimano Ultegra R8170 Di2 shifters
• Shimano Ultegra R8150 Di2 Front derailleur
• Shimano Ultegra R8150 Di2 Rear derailleur (max 34 teeth)
• Shimano Ultegra R8100 50/34 Crankset
• Lengths: 165 / 170 / 172.5 mm depending on size
• Praxis T47 threaded housing
• Shimano Ultegra 11-34 Cassette ( 12s )
• Shimano XT M8100 12s Chain

Bontrager carbon wheels

• Bontrager Aeolus Pro 51 carbon OCLV
• 51 mm aerodynamic rim profile
• Tubeless Ready
• 100x12 / 142x12 mm thru axle hubs
• Shimano 11/12 speed Freehub body

Tires

• Bontrager R3 Hard-Case Lite 700x28mm
• Tubeless Ready
• Compatible with tires up to 32 mm

Braking

• Shimano CL800 Centerlock rotors
• Diameter 160 mm
• Maximum compatibility: 180 mm front / 160 mm rear

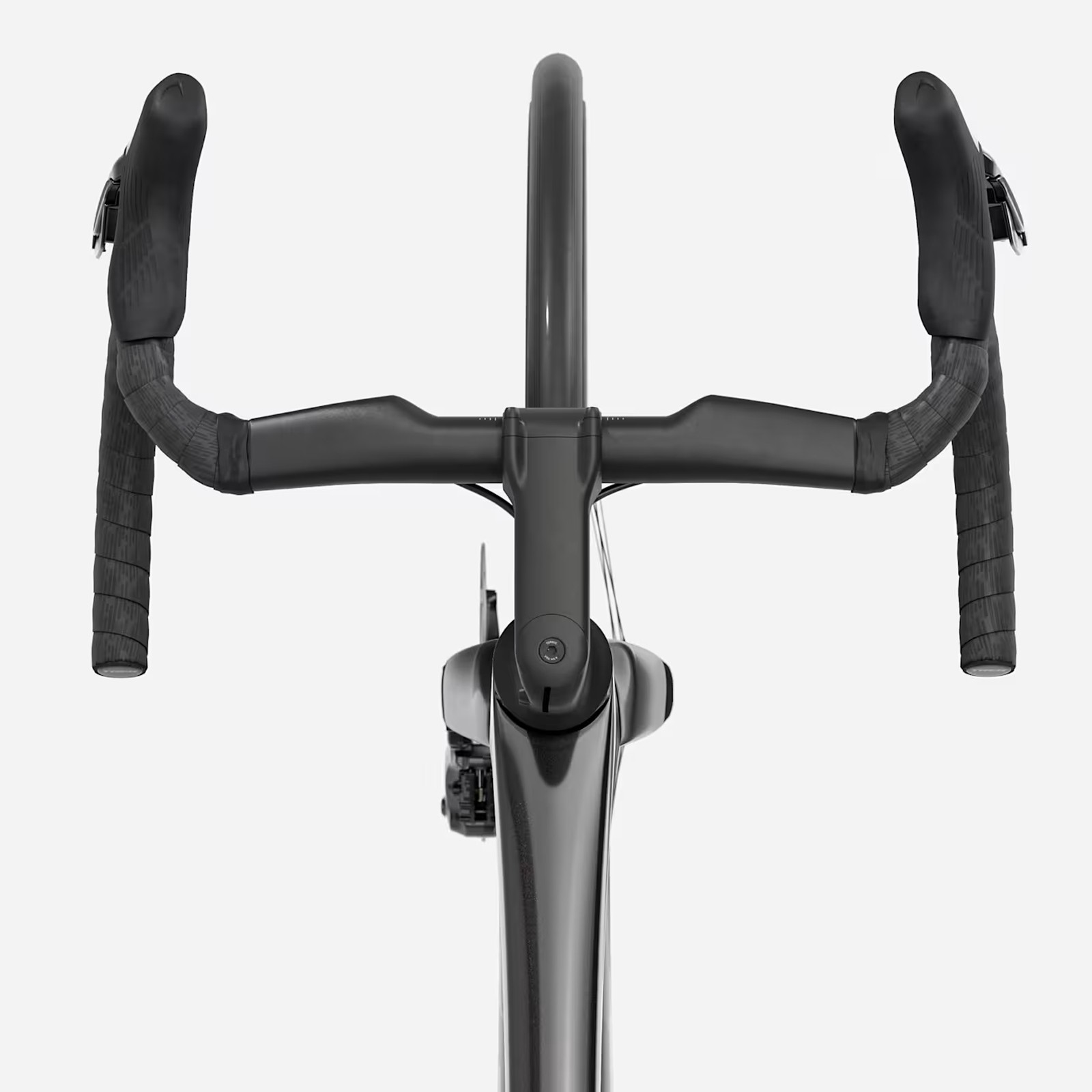

Carbon cockpit

• Bontrager Aero Pro / RSL Aero OCLV Carbon Handlebar
• Internal routing Di2
• Width depending on size: 35 to 44 cm
• Trek RCS Pro -7° Stem (80 to 110 mm)
• Trek EcoTack handlebar tape

Saddle and seatpost

• Bontrager Aeolus Elite Saddle (austenite rails, 145 mm)
• Madone aerodynamic Seatpost with 0 mm offset

Weight

• 7.87 kg (ML size with sealant, without inner tubes)
• Maximum total weight: 125 kg (bike + cyclist + equipment)

Summary

High-end Assembly with Shimano Ultegra Di2 electronic drivetrain , Aeolus Pro 51 carbon wheels and carbon cockpit: a lightweight, aerodynamic and competition-ready configuration.
