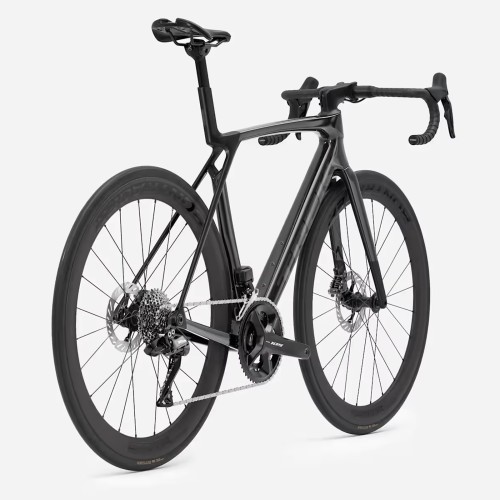

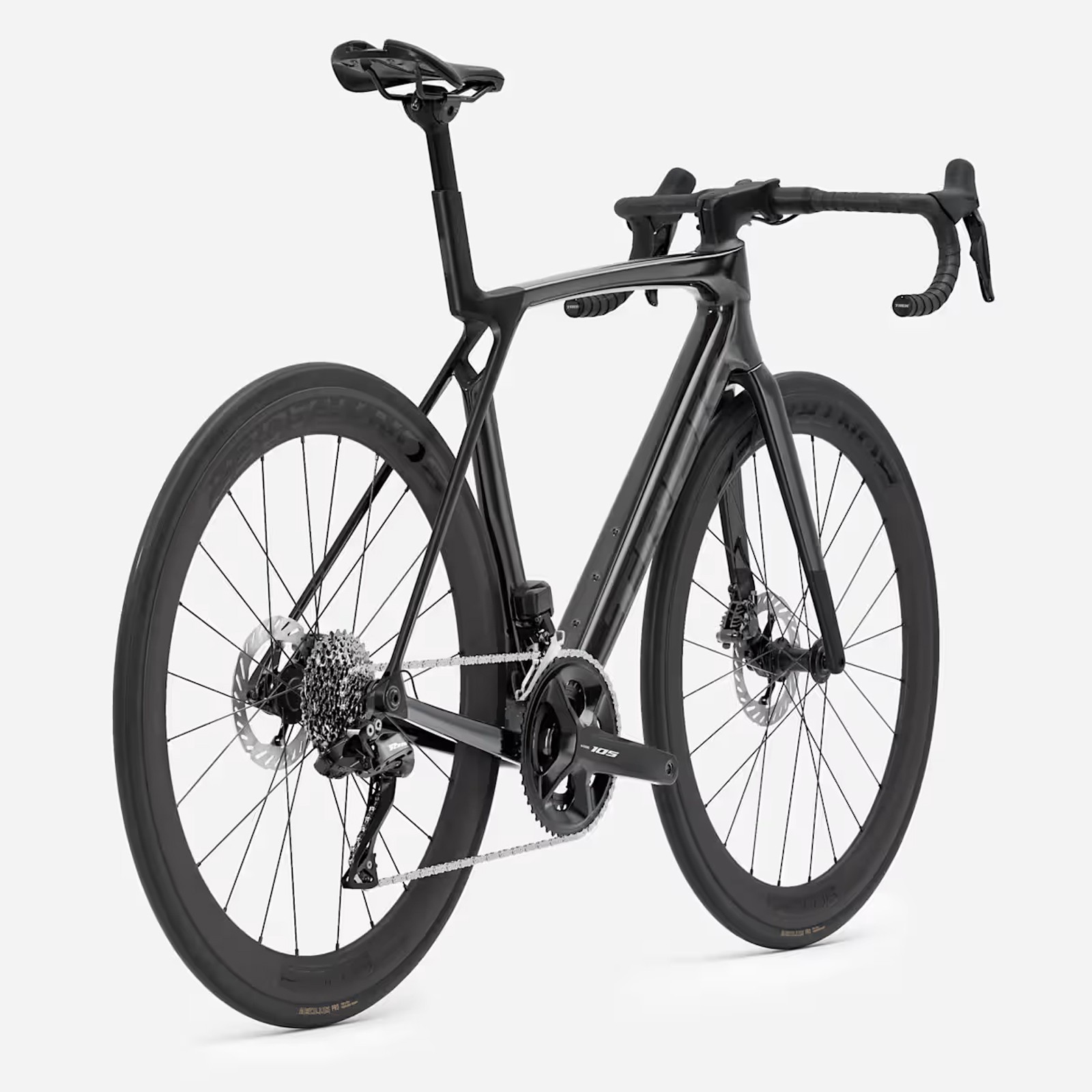

Trek Madone SL 6 Gen.8 105 Di2 Gloss Dark Star / Matte Deep Smoke Carbon road Bike 2026

Trek Madone SL 6 8th generation Shimano 105 Di2 Gloss Dark Star / Matte Deep Smoke 2026

Aerodynamic carbon Road Bike equipped with Shimano 105 Di2 electronic drivetrain , with carbon wheels for an excellent compromise between performance, technology and accessibility.

Carbon road Bike with Di2 12-speed drivetrain and 50mm profile carbon wheels for optimal performance.

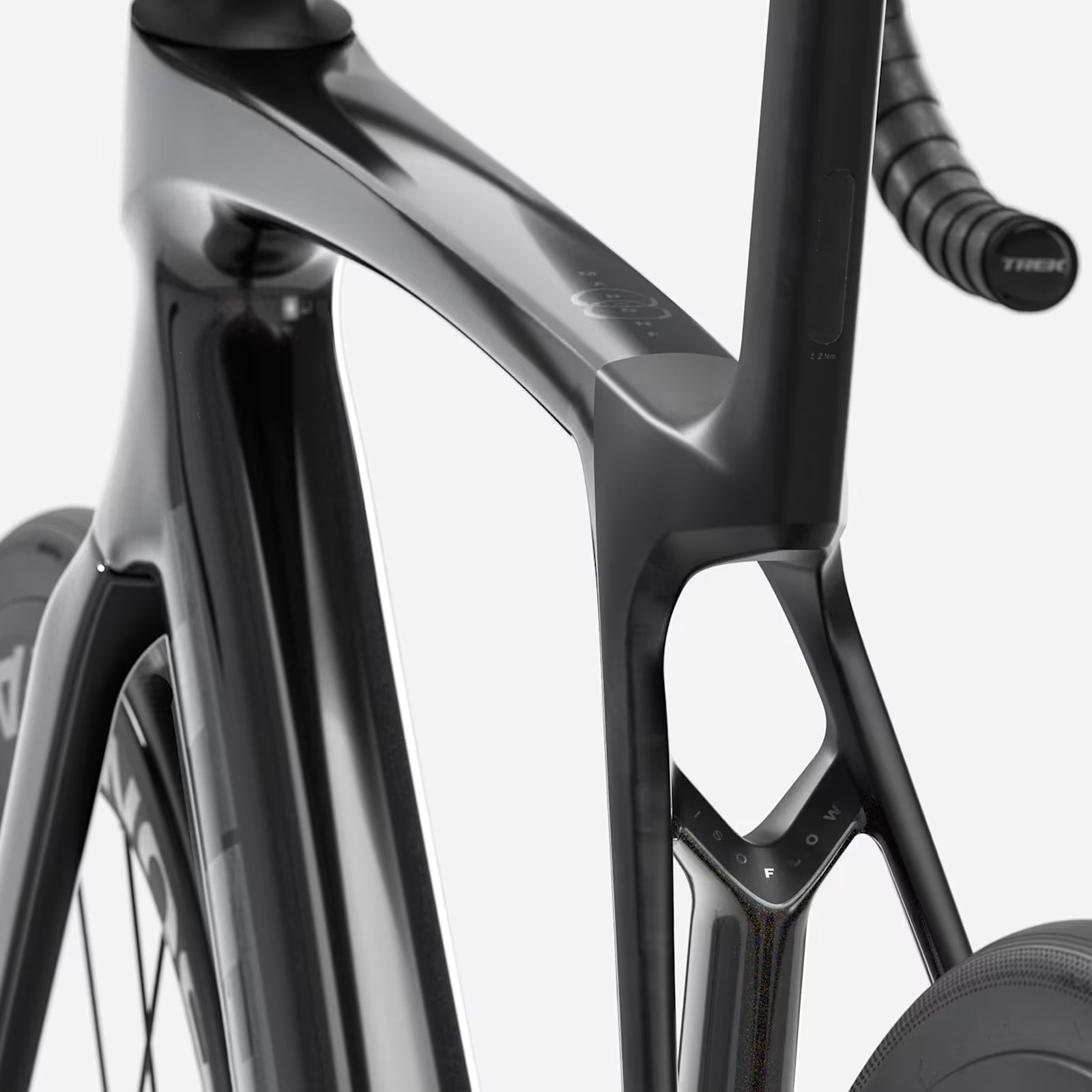

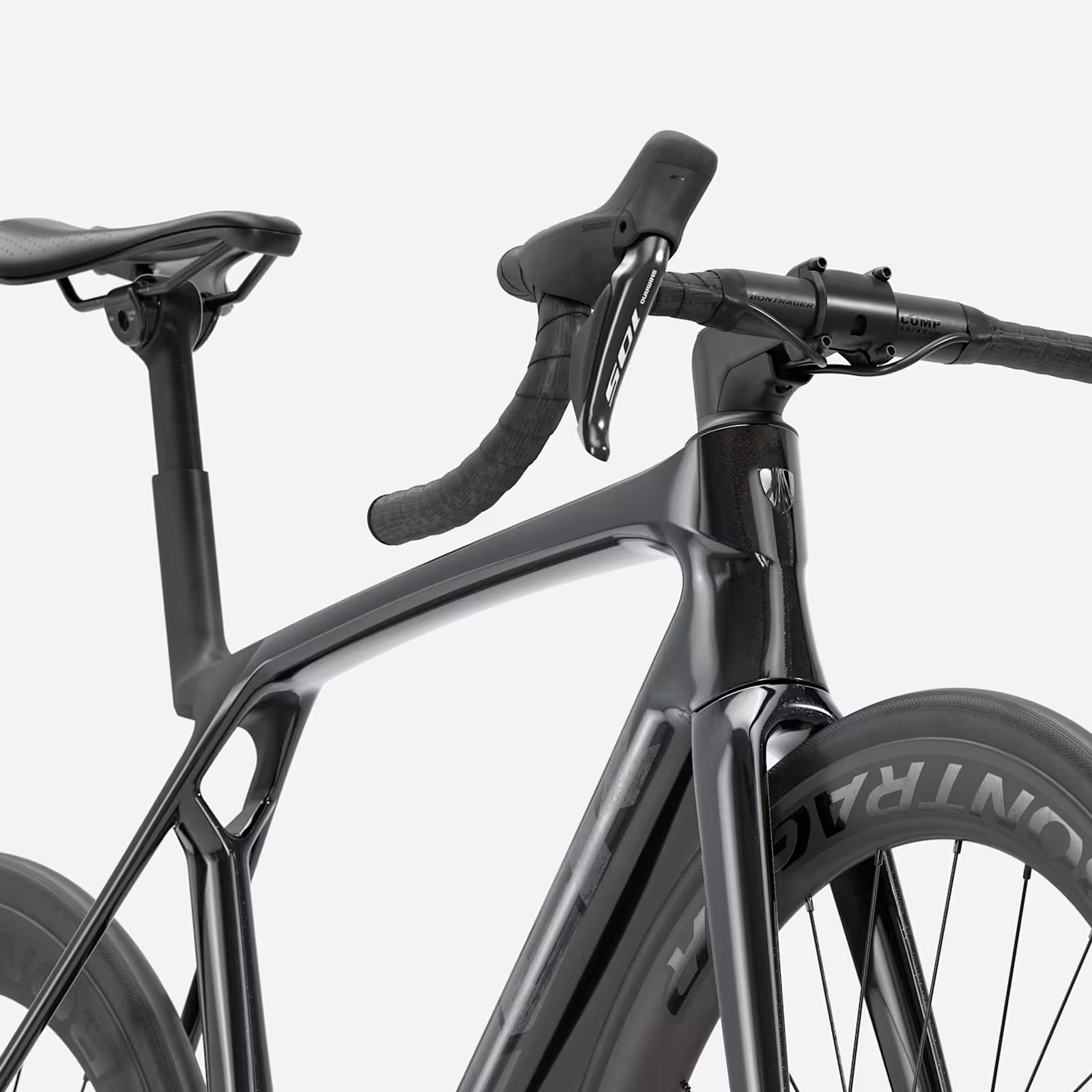

Frame

• OCLV Carbon 500 Series
• Full System Foil Aerodynamic Profile
• IsoFlow saddle tube
• RCS Headset
• Internal electronic or mechanical routing
• Removable aerodynamic chain guard
• Threaded T47 Bottom bracket
• Flat Mount rotor Brakes
• Universal Derailleur hanger (UDH)
• 142 x 12 mm Thru axle

Fork

• All carbon Madone 8th generation
• Carbon tapered head tube
• Internal cable routing
• Flat Mount Brakes
• 12 x 100 mm Thru axle

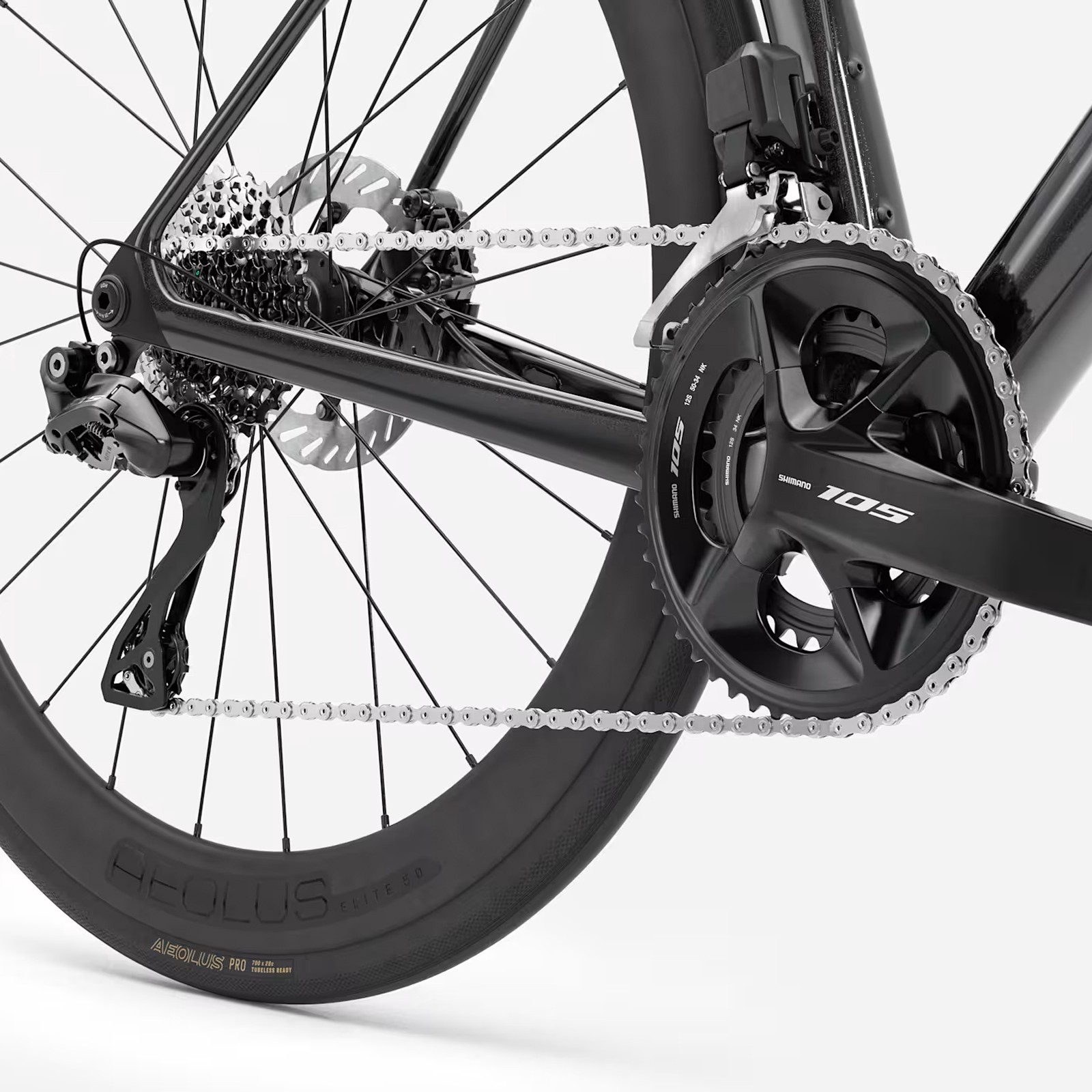

Shimano 105 Di2 12-speed Drivetrain

• Shimano 105 R7150 Di2 Front derailleur
• Shimano 105 R7150 Di2 Rear derailleur (max 36 teeth)
• Shimano 105 R7100 50/34 Crankset
• Lengths: 165 / 170 / 172.5 mm depending on size
• Praxis T47 threaded housing
• Shimano 105 11-34 Cassette ( 12s )
• Shimano SLX M7100 12s Chain

Bontrager carbon wheels

• Bontrager Aeolus Elite 50 carbon OCLV
• 50mm aerodynamic rim profile
• Tubeless Ready
• 100x12 / 142x12 mm thru axle hubs
• Shimano 11-speed Freehub body

Tires

• Bontrager R3 Hard-Case Lite 700x28mm
• Tubeless Ready
• Bontrager TLR rim Tape
• Compatible with tires up to 32 mm

Braking

• Flat Mount Hydraulic rotor Brakes
• Disc compatibility: 180 mm front / 160 mm rear

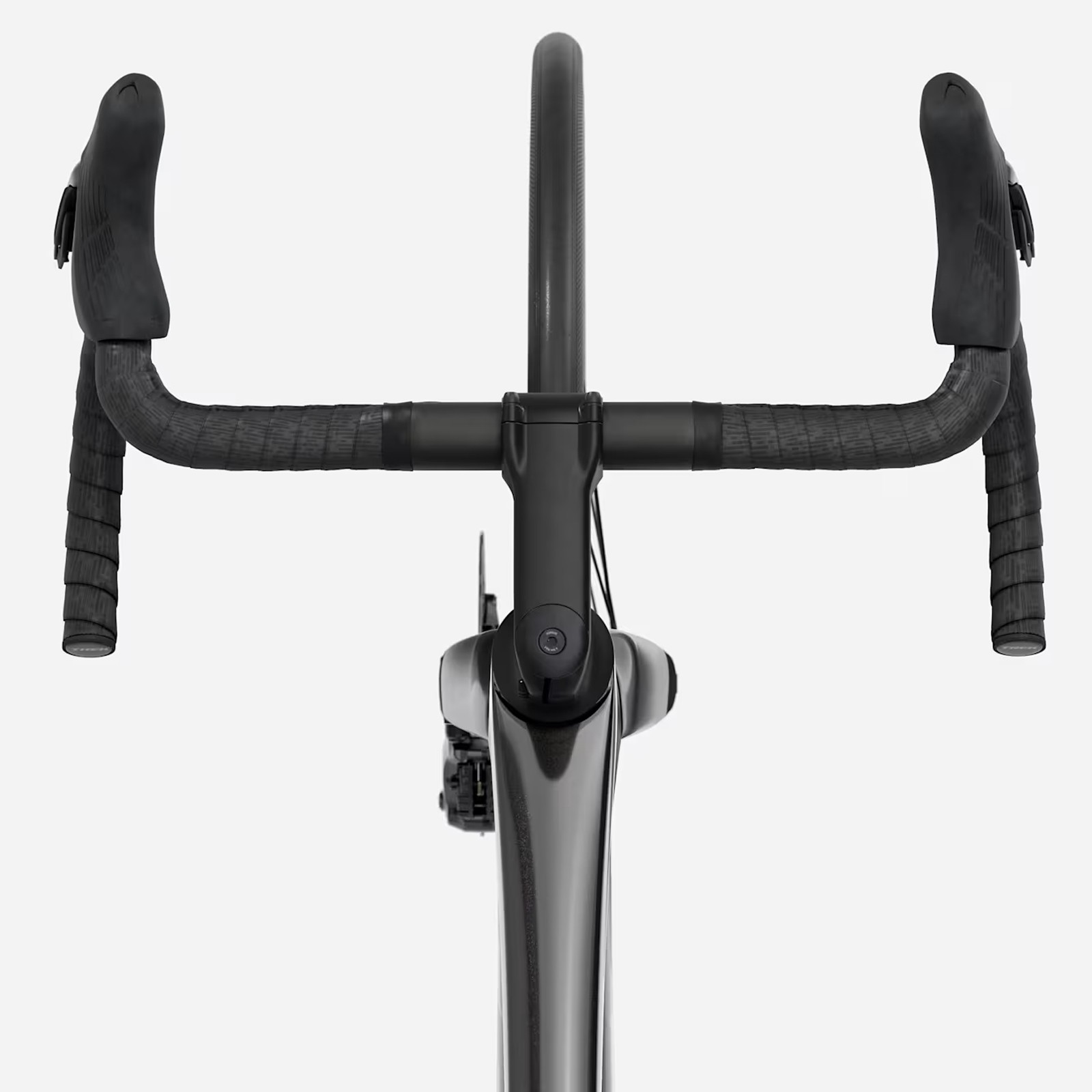

Cockpit and components

• Bontrager Comp aluminum 31.8 mm Handlebar
• Width depending on size: 36 to 42 cm
• Trek RCS Pro -7° Stem (80 to 110 mm)
• Trek EcoTack handlebar tape

Saddle and seatpost

• Bontrager Aeolus Elite Saddle (austenite rails, 145 mm)
• Madone aerodynamic Seatpost with 0 mm offset

Weight

• 8.16 kg (ML size with sealant, without inner tubes)
• Maximum total weight: 125 kg (bike + cyclist + equipment)

Summary

Modern configuration with Shimano 105 Di2 electronic drivetrain , Aeolus Elite 50 carbon wheels and OCLV 500 Series frame : a high-performance, reliable and accessible aero bike.
